Transform the Section Box using Gizmos

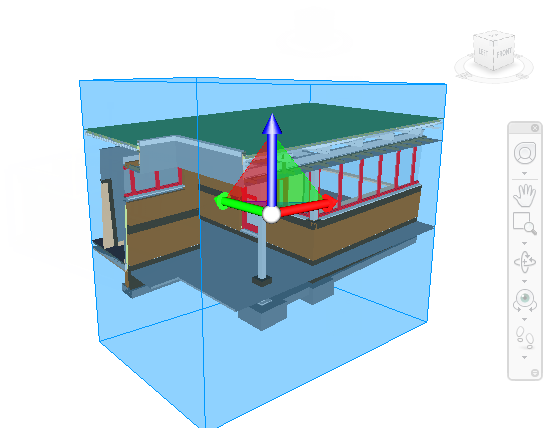

Move the Section Box with Gizmo

  1. Click Sectioning Tools tab > Mode panel > Box .
  2. On the Transform panel, click Move .
  3. Drag the gizmo arms or faces to move the box as needed.

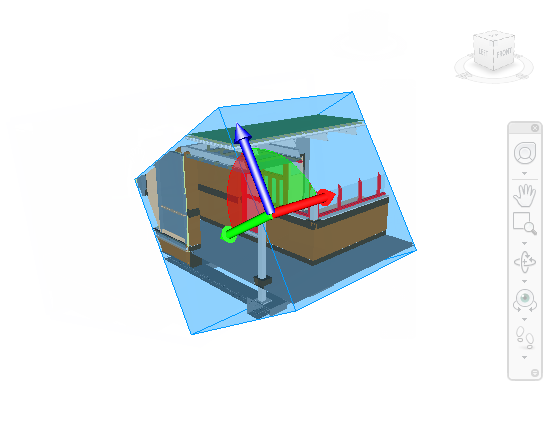

Rotate the Section Box with Gizmo

  1. Click Sectioning Tools tab > Mode panel > Box .

  2. On the Transform panel, click Rotate .

  3. Drag the gizmo to rotate the box as needed.

  4. To save the current sectioned viewpoint, click Sectioning Tools tab > Save panel > Save Viewpoint .

Resize the Section Box with Gizmo

  1. Click Sectioning Tools tab > Mode panel > Box .

  2. On the Transform panel, click Scale.

  3. Pull the scale points on the gizmo to resize the box as needed.

  4. To save the current sectioned viewpoint, click Sectioning Tools tab > Save panel > Save Viewpoint .
