Rewind Tool

As you use the navigation tools to reorient the view of a model, the previous view is saved to the navigation history. The navigation history holds a representation of the previous views of the model along with a thumbnail. A separate navigation history is maintained for each window; it is not maintained after the window is closed. Rewind navigation history is view-specific.

With the Rewind tool, you can retrieve previous views from the navigation history. From the navigation history, you can restore a previous view or scroll through all of the saved views.

Note: When you rewind and record a new navigation history, the rewound views are replaced by new views. The navigation history is not saved between sessions.

Restore the Previous View

Display a wheel.
Click the Rewind wedge.

Restore a Previous View with the Rewind History Panel

Display a wheel.
Click and hold the Rewind wedge.

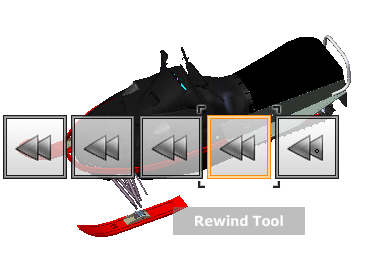

The Rewind History panel is displayed.
While holding down the button on your pointing device, drag to the left or to the right to restore a previous view.

Dragging to the left restores an older previous view. Dragging to the right restores a view that is newer than the one you are currently viewing. You must have previously used the Rewind tool to see views available on the right. The current position in the navigation history is indicated by the orange box that is dragged along the Rewind History panel.
