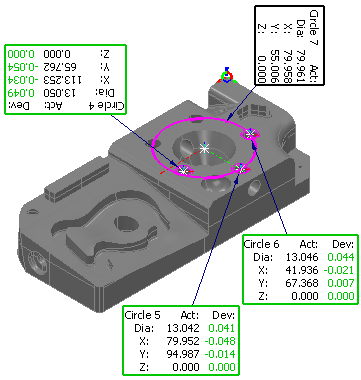

To control the size and position of labels

To control the size and position of labels, click View tab > View Options panel > Geometry & Form > Interactive Labels.

To:

• move a label, left-click and hold the label box, drag the label to its new position, then release the mouse button.
• rotate a label through 90 degrees, right-click the label and select Rotate label clockwise or Rotate label counter-clockwise from the context menu.
• hide a label, right-click the label and select Label visible from the context menu.
• size the labels, right-click a label and select Label settings from the context menu.
