To transform nominals

Use Tools tab > Transform panel > Transform Nominals to transform all nominals from one orientation and position to another. For example, you can use this option to transform measurements relative to a common coordinate system.

To transform the nominals in a document:

1. Click Tools tab > Transform panel > Transform Nominals. The Transformation Matrix dialog is displayed.
2. In the Transformation Matrix dialog, enter the transformation you want to use, and click OK. The nominals and measured data are transformed, and the CAD view is updated to show the effect of the transformation.

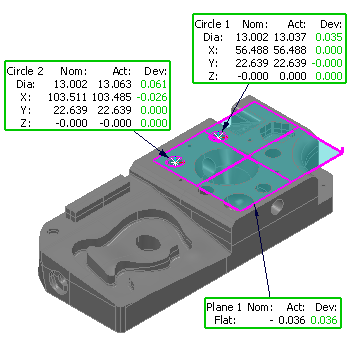

   For example, when you apply a transform of -45 degrees around the Z axis to the following model:

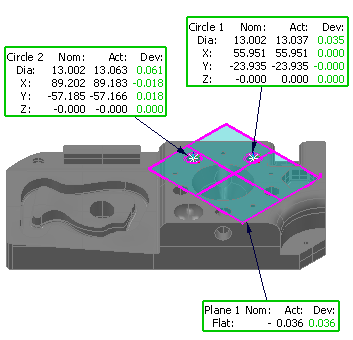

   it changes to:



To view the effects of the transformation on all your results, select the Report tab.
