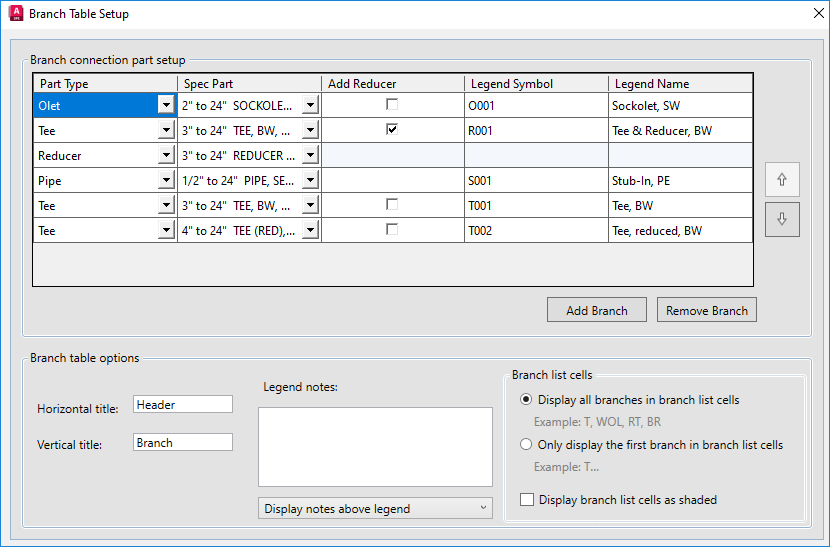

Defines the fittings that are used in the branch table. You can also set display options for the branch table.
Branch Connection Part Setup
Specifies branch fittings to use in the branch table and sets branch fitting priority.
- Part Type
- Specifies the fitting to use for the branch type. Specify pipe as the part type for a stub-in.
- Spec Part
- Specifies a part. If you set Use preferred part from pipe spec the part use priority in spec sheet is used.
- Add Reducer
- Adds an additional part to use for the branch. If selected, a second row is added for the branch connection. For example, you can add a reducer to a tee or reducing tee.
- Up Arrow
- Moves the branch fitting up the part setup table. The table order is for display purposes only, and does not change branch use preference.
- Down Arrow
- Moves the branch fitting down the part setup table.
- Add Branch
- Adds a row to the part setup table.
- Remove Branch
- Removes a row from the part setup table.
Branch Table Options
Sets display options for axis and a note.
- Horizontal Title
- Labels the horizontal axis of the branch table.
- Vertical Title
- Labels the vertical axis of the branch table.
- Legend Notes
- Adds a note to the branch table.
Branch List Cells
Sets display options for branch lists. A branch list specifies more than one branch type in a branch table cell. You can assign a branch list using the Select Branch List dialog box.
- Display All Branches In Branch List Cells
- Displays all branch types in a branch list cell.
- Only Display The First Branch In Branch List Cells
- Displays the branch type with the part use priority of 1 in a branch list cell.
- Display Branch List Cells As Shaded
- Displays branch list cells with a gray highlight.
