Create Walls By Wall Segment or By Room

Create finished walls in a room using a wall segment or within a room's boundaries.

To place a finished wall using a wall segment:

1. Click Architecture tab Build panel (Wall)
2. Click Modify | Place Wall tab Placement panel (Place By Segment).
3. In the canvas, hover over a wall segment to see a preview.
4. Click the highlighted segment in the canvas to place the wall.

To place the same finish walls in a room:

1. Click Architecture tab Build panel (Wall)
2. Click Modify | Place Wall tab Placement panel (Place By Room).
3. In the canvas, hover over a room to see a line highlight of potential walls.
4. Click the line indicator in the canvas to place the walls.

Note:

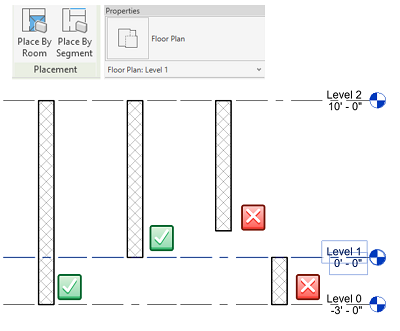

1. This feature only support walls that are cut by the associated level of the current plan view as targets to be picked. (See the attached image)
2. Curtain wall, Ellipse wall, Face wall, In-place wall and Room boundary line cannot be picked as target to create walls.
