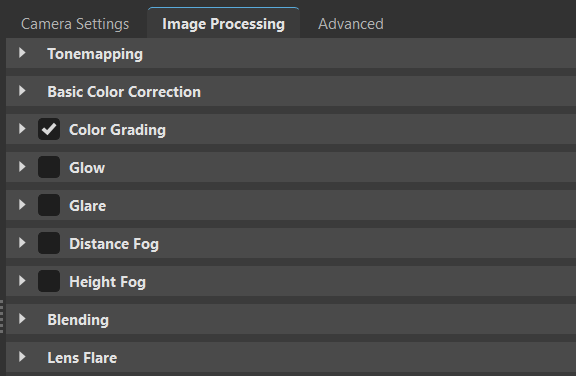

Image Processing Tab

Makes it possible to map the high dynamic range rendering for display onto an output device with lower dynamic range.

• Tonemapper - Selects an algorithm to adjust the appearance of a 32-bit render.

  • Reinhard Luminance - Uses the tone mapping methods, based on Erik Reinhard’s methods. The tone mapping takes place, based on the luminance values of a pixel. The pixel color information is retained.

  • Reinhard RGB - Uses the tone mapping methods, based on Erik Reinhard’s methods. The tone mapping takes place separately for each channel of an RGB pixel. Bright pixels are desaturated, as with a digital camera sensor. When selected, the Color Space option appears. Select from sRGB or ACES.

  • Logarithmic Luminance - Uses a logarithmic mapping, based on the luminance values. This mapping corresponds approximately to the human perception. The color information remains unchanged.

  • Logarithmic RGB - Uses a logarithmic mapping that affects each channel of an RGB pixel separately. Bright pixels are desaturated. When selected, the Color Space option appears. Select from sRGB or ACES.

  • Filmic - Uses an s-curve mapping that reproduces the behavior of a photographic film. RGB channels are mapped separately. Two parameters control the shape of the s-curve, Shoulder and Toe Strength.

  • Physical Camera - Available in VRED Professional and Design as of 2023.4. Enables the option to work with physical values like F-stop, Shutter Speed, Sensor Response, View, Look, ISO, and Automatic ISO Adaption to control the tonemapping of the image. Additionally, presets of response camera curves can be loaded and edited to adjust the appearance of the rendering. These values affect the amount of motion blur and depth of field. Also, a focal length change affects the exposure of the rendering.

  • Luminance - Available in VRED Professional and Design as of 2023.4. Shows the luminance values in the scene. Luminance is the light reflected from a surface, so this is what a human eye would see.

  • Illuminance - Available in VRED Professional and Design as of 2023.4. Shows the illuminance arriving at a surface.

• Exposure - Not available for the Physical Camera, Luminance, or Illuminance tonemapper. Affects the illumination behavior from the environment texture on the usage of the related camera. A threshold from 1.0 interprets the HDR environment texture exactly like it's given within its environmental property settings. A value below/above darkens/lightens the illustration from that camera.

• White Point - Not available for the Physical Camera, Luminance, or Illuminance tonemapper. Defines the tone above everything that should be shown as white. It maps the luminance value to the value 1 (that is, the maximum luminance of the display device).

• Contrast - Only available for the Reinhard Luminance, Reinhard RGB, Logarithmic Luminance, and Logarithmic RGB tonemapper. Locally adjusts the contrast, using a contrast range, to keep the image looking as close to the original HDR image as possible.

• Color Space - Only available when the Logarithmic RGB, Reinhard RGB, Physical Camera, or Filmic Tonemapper and the Custom Response Curve Sensor Response is selected . Sets the color space used when rendering your images.

  • sRGB - Uses the standard RGB color space for vibrant saturated consistently displayed colors.

  • ACES - Helps reproduce the color shifts that occur when filming a bright light. For example, think of a taillight where red gets shifted to yellow or a bright sky that gets slightly desaturated.

  • AgX - Offers improved color handling in bright areas compared to ACES, where colors tend to shift their hue value and are too saturated. In AgX, bright colors move toward white, replicating the behavior of real cameras.

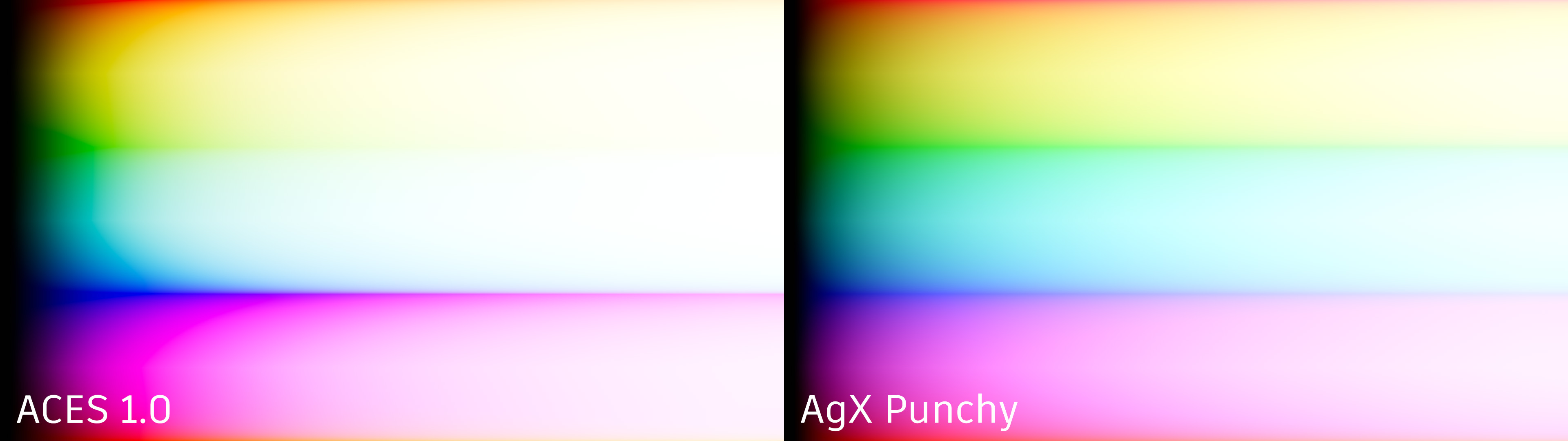

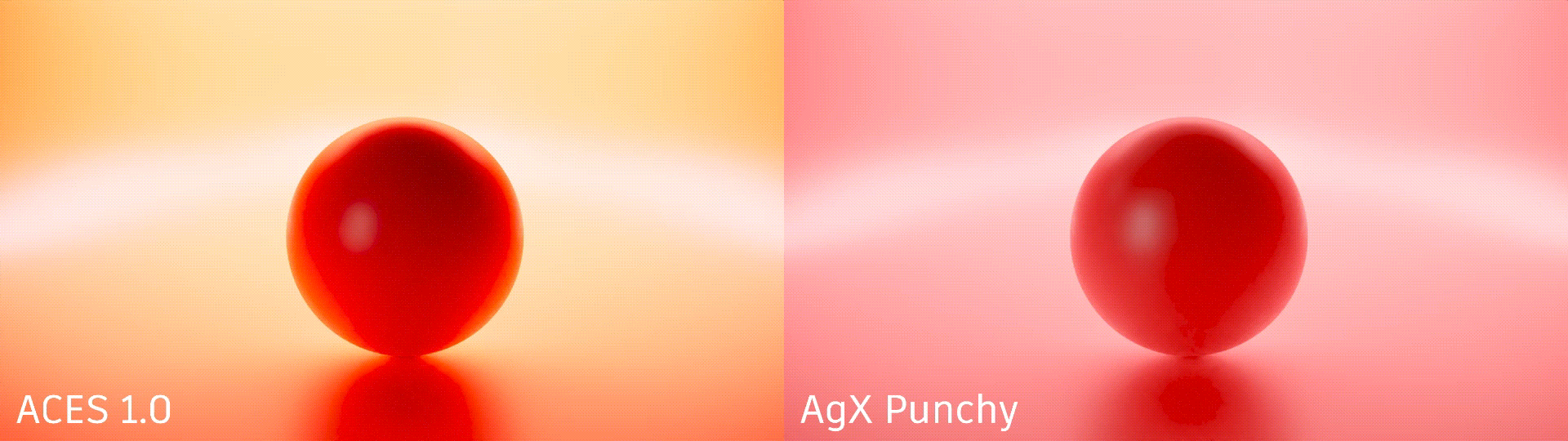

    The following color sweep example, rendered in VRED, nicely illustrates the different hue shifts of the two tonemappers across the color spectrum.

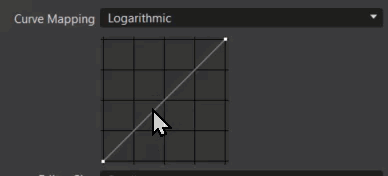

• Curve Mapping - Only available using the Physical Camera tonemapper and Custom Response Curve sensor response. Sets the mapping of input values to the sensor response curve lookup table.

  • Linear (Legacy option) - Clamps the HDR rendering results to the 0 to 1 range, as input to the lookup table.

  • Logarithmic - Uses the -12.473930 to 12.56068812 range of the log2 of the HDR rendering results, as input to the lookup table. This allows for 25 stops of dynamic range.



• Shoulder Strength - Only available for the Filmic tonemapper. Controls the gradient in the area of bright pixels.

• Toe Strength - Only available for the Filmic tonemapper. Controls the gradient in the area of the dark pixels.

• F-Stop - Only available when the Physical Camera Tonemapper is selected. Sets the ratio of the focal length to the aperture.

• Shutter Speed - Only available when the Physical Camera Tonemapper is selected. Defines a custom shutter speed in 1 over the input value (1/x).

• ISO - Only available when the Physical Camera Tonemapper is selected. Automatically adjusts the camera sensor's ISO when the F-Stop or shutter speed changes to maintain consistent brightness, determining the sensitivity of the image sensor; the lower the number, the less sensitive the camera is to light.

• Automatic ISO Adaption - Only available when the Physical Camera Tonemapper is selected. Automatically adjusts the camera sensor's ISO when the F-Stop or shutter speed changes to maintain consistent brightness.

• Sensor Response - Only available for the Physical Camera Tonemapper. Sets the tonemapping algorithm to use for mapping HDR rendering results to the valid value range. Provides the following options:

  • Custom Response Curve - Allows the use of a custom sensor response curve for RGB or Luminance by enabling the Curve Mapping, Editor Size, Response Curve, and Response Curve Mode options.

  • OpenColorIO 2.4 - Only available when the Physical Camera Tonemapper is selected. Unlocks new capabilities in the Physical Camera for a more flexible way to manage color transformations when working with high-fidelity color imaging.

  • ACES 1.0 - Uses sensor response behavior, as defined in the Academy Color Encoding System, so there will be a filmic color shift. For example, red glowing objects shift to yellow.

  • ACES 0.7 - Uses sensor response behavior, as defined in the Academy Color Encoding System, so there will be a digital look, where red glowing objects shift to white.

  • AgX - Uses sensor response behavior to transforms the tonemapping by improving upon Filmic to achieve a more photorealistic results. AgX provides a dynamic range of 16.5 stops and desaturates highly exposed colors to replicate the natural light response of film.

  • AgX Punchy - Uses sensor response behavior to transforms the tonemapping by improving upon AgX to achieve more vibrant results.



• View - Only available when the Sensor Response OpenColorIO 2.4 is selected. Sets the tonemapping curve used for transforming the view. Choose from the following:

  • ACES 2.0 - Improves the consistency of an image's tone and minimizes color distortions.

  • ACES 1.0 - Uses sensor response behavior, as defined in the Academy Color Encoding System, for a filmic color shift.

  • PBR Neutral - Uses PBR color accuracy to achieve an accurate physical simulation rendering that is optimally illuminated and uses an exact sRGB color representation for grayscale lighting conditions that is neutrally depicted under colored light, such as sunlight.

• Un-tone-mapped - Use when wanting to see an image's source color texture values as they appear during editing without tonemapping.

• Look - Only available when the Sensor Response OpenColorIO 2.4 is selected. Sets the specific look modification transform used when tonemapping. Choose from the following:

  • None - No look modifications are made.

  • ACES 1.3 Reference Gamut Compression - Corrects artifacts in source images. This is the replacement created for the Blue Light Artifact LMT. It uses a simple RGB ratio-based algorithm that compresses values based on their distance from the neutral axis.

• LMT - Blue Light Artifact Fix - Blue light exposure increases to white, instead of magenta, fixing blue light artifacts.

• Editor Size - Only available when the Custom Response Curve Sensor Response is selected. Sets the response curve editor size to small, medium, or large.

• Response Curve - Only available when the Custom Response Curve Sensor Response is selected. Allows a custom response curve, from or to a file, to be loaded or saved.

• Response Curve Mode - Only available when the Custom Response Curve Sensor Response is selected. Sets the response curve mode to use luminance, red, green, or RGB.

• Luminance (cd/m2) Range - Only available for the Luminance tonemapper. Sets the luminance values in the scene when looking at it from a particular angle or point of view.

• Lux (lm/m2) Range - Only available for the Illuminance tonemapper. Sets the speed at which the illuminance arrives at the surface.

• Mapping Mode - Only available for the Luminance or Illuminance tonemapper. Select one of the following mapping modes: Logarithmic RGB Scale, Logarithmic HSV Scale, Linear RGB Scale, or Linear HSV Scale.

This section contains options for basic color correction:

• White Balance - Defines the white balance value that affects the image in the post-processing procedure, which is measured in Kelvin. 6500 Kelvin is used as standard for video productions.

• Cool/Warm - Adjusts the color temperature of the image to give it a warmer or cooler tone.

• - Quickly adjusts the white balance. Click an area of the image that should be white and VRED will adjust the white balance based on your selection.

• Hue-Shift - Shifts all colors uniformly towards a color shade.

• Contrast - Separates the light and dark color values further from each other.

• Brightness - Increases or decreases lightness for the scene.

• Saturation - Sets the intensity of the color values.

• Apply To Backplates - Applies the camera color correction and the camera's white balance to the backplate. Otherwise it is only applied to the rendered geometry.

• Apply To Frontplates - Applies the camera color correction and the camera's white balance to the frontplate. Otherwise it is only applied to the rendered geometry.

The Color Grading options to help with exposure and impact the mood, tone, and the overall visual appeal of your project. Use the QuickAccess Bar tool to instantly enable or disable any color grading options.

• Presets - Provides an extensive list of presets. For how to create a camera preset, see Creating a Camera Preset.

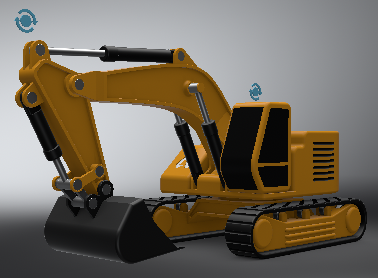

  Default	Film Warm Preset

• Filename - Provides options for creating/saving and importing color grading presets into your project. Click to locate the file, which is stored here, C:\ProgramData\Autodesk\VREDPro-17.3\data\OpenColorIO\Presets, by default. Select the file and click Open. When using one of the provided presets, select Default.

Color Grading Sections

Within the Color Grading section are additional sections, Primary, Tone, RGB Curves, and LUT.

• To enable the options in a section and make them editable, add a check in front of it.

• To disable all options in a section instantly, unchecking the section.

Each section contains several new controls, including color wheels, vertical sliders, and a new curve editor, to help you fine-tune the color balance of your rendering that are grouped within a frame.

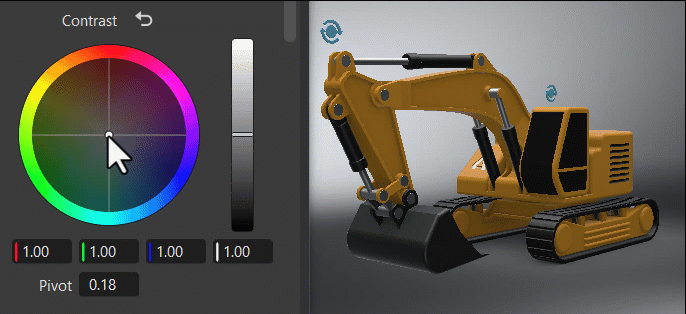

The color wheel controls within the Exposure frame

Using the Color Wheel Controls

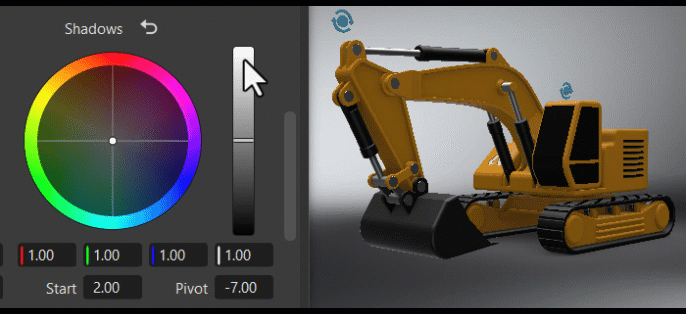

Within the color wheel, click-dragging the center control toward the edge to adjust the grading, increasing the tint and intensity. This slowed mouse movement is intentional, as it provides more granular control in a relatively small control field. Clicking a specific location instantly jump to that position.

The vertical slider to the right of the wheel is the main control. For example, dragging the Contrast main slider up would increase difference between the brighter and darker parts, sharpening the entire image; whereas dragging it down would decrease the difference, softening the entire image.

The fields below the color wheel display the color transforms made in the color wheel, representing the individual RGB and Luminance values.

Clicking , found next to the frame title, reverts all color wheel controls for that frame to their original default state.

Primary

The Primary frame offers color wheel controls to allow broad adjustments made to the overall image. This includes adjustments to the entire image's saturation, exposure, and offset.

The Saturation slider adjusts the intensity and vividness of the image colors. Increasing the saturation makes colors more vibrant, while decreasing it brings them closer to black, white, or gray.

The Pivot adjusts the contrast balance and location of the center point used for making changes. Use it to fine-tune your contrast adjustments. Increasing the pivot value, darkens the image, while decreasing it brightens it.

Tone

The Tone frame changes the image's color tone, helping to establish a mood or visual tone. Use the controls to color your blacks, shadows, midtones, highlights, and whites.

The S Contrast is a contrast curve. Use it to increase the image's contrast by darkening shadows and brightening highlights.

The Start and Width sets the range used for the contrast between the deepest blacks, modtones, and brightest whites. The higher the value, the larger the dynamic range.

The Pivot adjusts the contrast balance and location of the center point used for making changes. Use it to fine-tune your contrast adjustments. Increasing the pivot value, darkens the image, while decreasing it brightens it.

RGB Curve

The histogram is purely based on the rendered image before any tonemapping or color correction. Its grading curves update as you move the camera around.

Along the top of the histogram are the following options:

• Y for selecting luminance curve



• R for selecting red curve



• G for selecting green curve



• B for selecting blue curve



• for picking a color from the viewport and adding a new control point to the curve

• for returning fields to their default values

Click the curve to add a new point and increase the contrast or pick a certain color and add a point to the graph that explicitly affects that range.

LUT

A LUT is a look up table that's used to tell VRED what color to make things. This can save a lot of time when color grading your content.

• Available LUTs - Provides a list of LUT presets, as well as a custom LUT option.



  Bay Cold LUT	Vintage LUT

• Active LUT - Displays the current active LUT and provides options to open, import, save, update, or remove a LUT.

• Log Space - Provides a list of logarithmic spaces to be applied to the LUT.



• Weight - Sets the influence of the LUT on the overall color grading of the image.

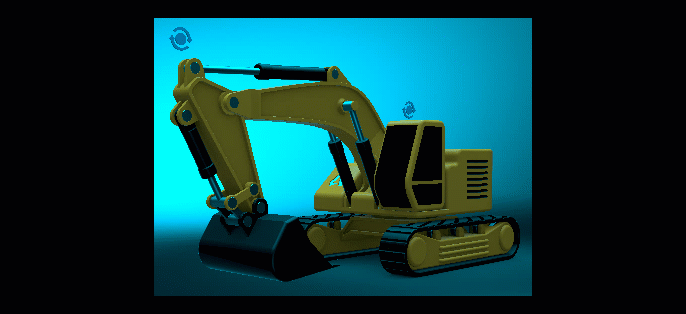

  As the Weight value is decreased, so is the Active LUT's influence on the image's color grading.

For LUT workflows, see the following:

• Loading a LUT
• Creating a Custom LUT
• Saving a LUT
• Updating a LUT
• Deleting a LUT

This section contains glow parameters:

• Enable - Enables/disables glow. When enabled, Threshold, Size, and Intensity are activated.

• Threshold - Determines the threshold of the brightness of a pixel where the glow effect sets in.

• Size - The glow size determines the size of the glow surrounding an object.

• Intensity - The glow intensity determines the brightness of the glow.

This section contains parameters for glare:

• Enable - Enables/disables glare.

• Threshold - Determines the threshold of the brightness of a pixel for where the glare effect sets in.

• Size - Determines the size of the glare.

• Intensity - Determines the brightness of the glare.

• Rotation - Sets the rotation of streaks in a specified angle.

• Streaks - Determines the maximum count of streaks. Higher values appear like stars.

This section contains parameters for fog. To see how to use fog, see Working with Fog.

• Enable Distance - Enables the distance fog options for defining the characteristics of fog as it gets farther away. As it travels further into the scene, objects become less visible and the fog gets thicker, just like in real life. So, if you want your object to stand out against your background, this is an elegant way to achieve this.

• Color - Determines the color of the fog. Use the slider or enter the RGB value for the color of your Distance fog. The color you set is blended with the lit material color and factors in the Falloff value you've set.

• Falloff - Describes how the fog changes in density as you travel deeper into a scene. There are two options:

  • Linear - Creates fog that slowly thickens as you move deeper into the scene and away from the camera, ultimately creating less fog than Realistic.

  • Realistic - Creates life-like fog that quickly thickens (exponentially) as you move deeper into the scene and away from the camera.

• Density - Determines the thickness of the fog, based on the selected Falloff option and distance. When set to a high value, objects in the scene quickly blend into the background, getting obstructed by the fog.

• Distance - Sets how near or far the camera is from the beginning of the fog.

• Noise Intensity - Creates noise in the fog density. The density of the fog appears to be different in different places, not uniform. Use it to roughly approximate clouds or similar phenomena.

• Noise Size - Determines the size of the irregularities in the fog, made by the noise function or texture. When Noise Intensity is greater than zero, you can change their size. Use the three sliders to scale the size of the irregularities in one or all three directions (X, Y, and Z). If you want uniform scaling, tick the Uniform Scaling check box.

• Uniform Scaling - Determines whether noise functions/textures are all scaled uniformly or at different rates when Noise Size is set.

• Noise Offset - Changes the position of the irregularities in the fog, made by the noise function or texture, when Noise Intensity is greater than zero.

• Enable Height - Helps you simulate effects like ground fog or fog at the top of high buildings. Like Distance fog, Height fog depends how far away things are and where they are inside the fog.

  Things that are closer are move visible. As things get further away, the fog gets thicker.

  When things are inside the fog, you won't notice a difference between Distance fog and Height Fog. Where you will notice a difference is where parts of objects can be outside the fog, unobscured, while others won't be and are obstructed.

• Color - Determines the color of the fog. Use the slider or enter the RGB value for the color of your Distance fog. The color you set is blended with the lit material color and factors in the Falloff value you've set.

• Falloff - Describes how the fog changes in density as you travel deeper into a scene. There are two options:

  • Linear - Creates fog that slowly thickens as you move deeper into the scene and away from the camera, ultimately creating less fog than Realistic.

  • Realistic - Creates life-like fog that quickly thickens (exponentially) as you move deeper into the scene and away from the camera.

• Density - Determines the thickness of the fog, based on the selected Falloff option and distance. When set to a high value, objects in the scene quickly blend into the background, getting obstructed by the fog.

• Min Max - Min defines at what height from the ground the fog begins. Max defines at what height from the ground the fog ends. To see Height fog, the Max value must be greater than Min.

• Noise Intensity - Creates noise in the fog density. The density of the fog appears to be different in different places, not uniform. Use it to roughly approximate clouds or similar phenomena.

• Noise Size - Determines the size of the irregularities in the fog, made by the noise function or texture. When Noise Intensity is greater than zero, you can change their size. Use the three sliders to scale the size of the irregularities in one or all three directions (X, Y, and Z). If you want uniform scaling, tick the Uniform Scaling check box.

• Uniform Scaling - Determines whether noise functions/textures are all scaled uniformly or at different rates when Noise Size is set.

• Noise Offset - Changes the position of the irregularities in the fog, made by the noise function or texture, when Noise Intensity is greater than zero.

• Blend Range - Normally, fog density is constant, resulting in unpleasant sharp transitions between foggy and non-foggy areas. Use the Blend Range slider to gradually change fog density as you get higher into the fog. At the beginning, the fog gradually builds, until it's reached maximum density, then gradually fades away. The fog disappears when Blend Range is set to 1.

VRED provides different modes of blending. By default, this will be off.

• Mode - Sets the blending mode used during image processing.

  • Off - No blending.

  • Vignette - Renders a vignette on top of the rendering. A vignette darkens the corners of an image.

  • Image - Multiplies a texture on top of the rendering. Can be used for texture overlays.

• Amount - Sets the opacity of the vignette or image. The amount can be used to control the darkness of the vignette or image.

• Radius - Only available when Vignette blending is selected. Sets the radius of the vignette.

• Roundness - Only available when Vignette blending is selected. Sets the shape of the vignette. A roundness of 0 indicates the ellipse fits the render resolution.

• Feather - Only available when Vignette blending is selected. Defines the blurriness of the vignette.

• Left and Right Eye Blend Map - Only available when Image blending is selected. Allows the use of blending textures at pixel level. At a final pass, the input image is multiplied with the rendering. In stereo mode, it is possible to define different images for left and right eye.

• Enable - Enables or disables lens flares.

For how to use lens flares, see Working with Lens Flares.

Click here to watch the VRED 2019 Lens Flare video.
