Shapes
Shape objects are used to define the cross-section shape of an open channel link.
The shape is selected in the Shape ID field of the link property sheet.
For each link, an existing shape can be selected.
|
OREC |
|
|
OT4:1OT2:1OT1:1OT1:2OT1:4OT1:6 |
Trapezoidal channel OTx:y, where x:y defines gradient of side slope of channel. |
|
OU |
|
|

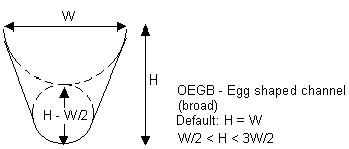

OEGB |
|
|

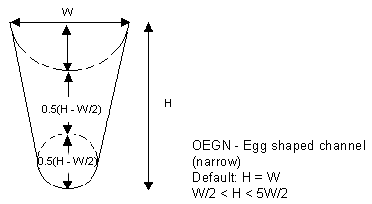

OEGN |
|
