This page allows you to set default values for use when viewing service level reports.
These values are used to populate the Grid Report (Service Level / Service Level Summary) dialog, which is displayed by selecting Results | Grid reports and then either Service level or Service level summary.

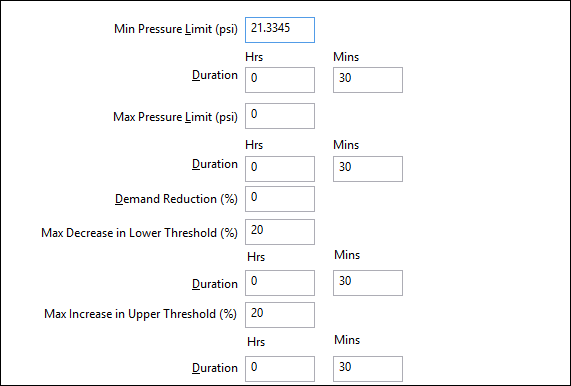

The page is displayed by choosing Tools | Options and selecting the Service Level Threshold and Duration tab.
| Data Field | Description |
|---|---|
|
Min Pressure Limit |
The target minimum pressure. If the pressure falls below this target for a period longer than the Duration, a failure is reported. |
|
Duration (Min Pressure) |
The duration (cumulative over the simulation) for which the pressure must fail to reach the minimum threshold, before a failure is reported. |
|
Max Pressure Limit |
The maximum allowable pressure. If the pressure rises above this limit for a period longer than the Duration, a failure is reported. |
|
Duration (Max Pressure) |
The duration (cumulative over the simulation) for which the pressure must exceed the limit, before a failure is reported. |
|
Demand Reduction (%) |
The allowable percentage reduction in demand when comparing against a base simulation (due to pressure related demand). If demand reduction falls below this target, a failure is reported. |
|
Max Decrease in Lower Threshold (%) |
The allowable percentage decrease in lower pressure threshold when comparing against a base simulation. If decrease in lower threshold falls below this target, a failure is reported. Lower pressure threshold is the lowest pressure that was experienced for the specified (continuous) Duration. |
|
Duration (Lower Threshold) |
The duration to be used when calculating lower pressure threshold for a simulation. |
|
Max Increase in Upper Threshold (%) |
The allowable percentage increase in upper pressure threshold when comparing against a base simulation. If increase in upper threshold exceeds this target, a failure is reported. Upper pressure threshold is the highest pressure that was exceeded for the specified (continuous) Duration. |
|
Duration (Upper Threshold) |
The duration to be used when calculating upper pressure threshold for a simulation. |
