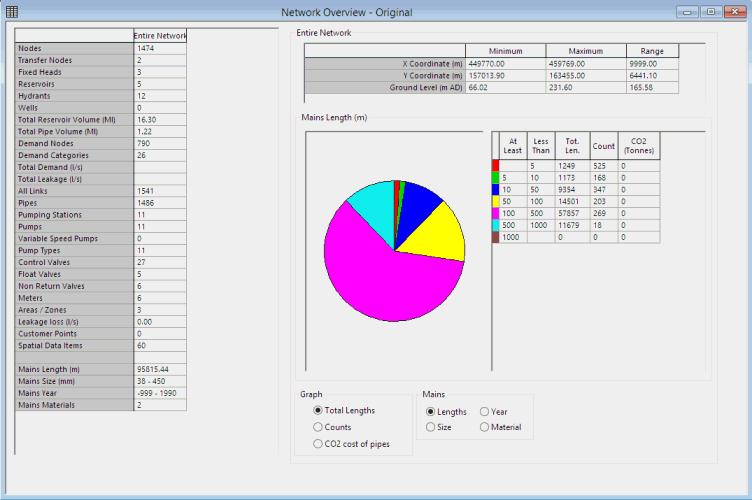

This window displays a comprehensive summary of the network.
The view is displayed when Network > Overview is selected from the Network menu.
The left hand side of the view contains a summary of the entire network. If there is a current selection, an additional column is added containing a summary of the objects within the polygon. If a polygon is currently selected, the additional column will display a summary of the objects within the polygon.
The right side of the view provides additional information about particular areas and parameters:
- Choose to display additional information for the entire network, or for a selection of objects, by clicking the appropriate column header on the left window.
- Additional information on pipe parameters - Length, Size, Year, or Materials can be displayed by selecting the radio buttons in the Mains group.
For full details of the information displayed on the view, see Network Summary.
