Autodesk Civil 3D provides plot line and curve anchor points for the creation of useful visual cues when annotating plots. In previous releases, workarounds were used to create crow’s feet to indicate the start and end points of plot lines. These extra steps are no longer necessary.
The Iron Node point label style can be used to indicate where plot plot lines meet. In the Add Labels dialog box, note the Span label style as well as the Iron Pipe label style.

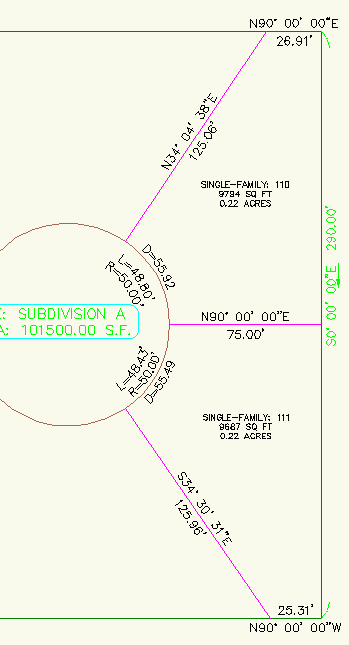

Figure 17: Plot span label with crow’s feet
