To Create a Frame or Mullion Override

Use this procedure to select a different element definition for a selected frame edge or mullion by using an edge assignment override.

To exchange a frame or mullion, the new definition must already be defined in the door/window assembly style.

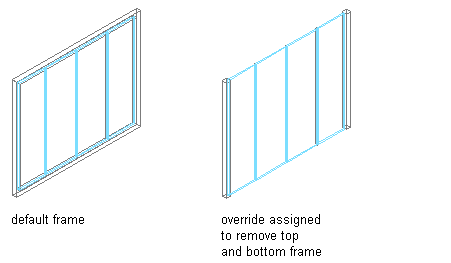

Overriding a Door/Window Assembly frame definition

1. Select the door/window assembly on which you want to override an edge.
2. Click Door/Window Assembly tab Modify panel Frame/Mullion drop-down Override Assignment.
3. Select the frame or mullion edge you want to override.
4. Create the override:

   If you want to…	Then…
   exchange the existing edge for another	select a new edge definition from the list.
   remove the frame or mullion edge	select Remove.

5. Click OK.
6. Specify where you want to save the door/window assembly override:

   If you want to…	Then…
   save the override only on this specific door/window assembly	no further steps are necessary. The override is saved to the door/window assembly.
   save the override to a door/window assembly style	select the door/window assembly, and click Door/Window Assembly tab Modify panel Design Rules drop-down Transfer To Object.

7. If you have chosen to save the override to a door/window assembly style, select the door/window assembly again, click Door/Window Assembly tab Modify panel Design Rules drop-down Save to Style and decide to which door/window assembly style you want to save the override.

   If you want to…	Then…
   save the override to the current door/window assembly style	select Transfer Edge Overrides to Style, and click OK. Note: If you have created only a frame or mullion edge override, only the Transfer Edge Overrides to Style check box is active. If you have also created other overrides, such as a cell merge or a division override, these check boxes are available as well. If you also want to save these overrides to the style, select their check boxes too.
   save the override to a new door/window assembly style	select Transfer Edge Overrides to Style, and click New. Then, enter a name for the new door/window assembly style, and click OK. Note: If you have created only a frame or mullion edge override, only the Transfer Edge Overrides to Style check box is active. If you have also created other overrides, such as a cell merge or a division override, these check boxes are available as well. If you also want to save these overrides to the style, select their check boxes too.

   Note: If you do not want to save the override back to a style at all, click Door/Window Assembly tab Modify panel Design Rules drop-down Revert to Style Design Rules. The overrides remain on the door/window assembly, where they can be removed, but they are not saved back to a door/window assembly style.
