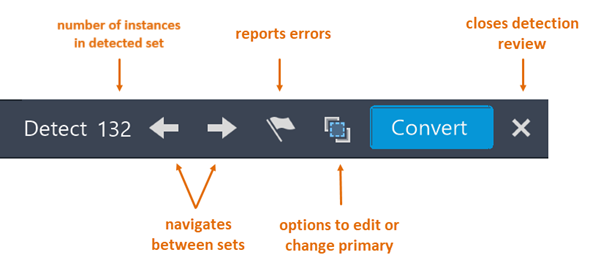

Detection Review Toolbar

Displays various options and controls that allows you to navigate and manage the sets of detected objects.

Toolbar Commands and Options

When you're in the review mode, the Detection Review toolbar displays at the top of the drawing area.

The following controls are available.

Set Index

Displays the current set number along with the total number of detected sets.

Previous or Next

Highlights the previous or next set, allowing an efficient review of the detected objects.

Report

Displays a list of potential errors within the current set of detected objects. Reporting these errors contributes to the ongoing improvement of the feature's performance and accuracy.

Primary Options

Displays options to edit or change the primary object.

Selects a new primary for block definition.
Modifies primary by adding or removing nearby entities.

Convert

Displays the Convert dialog box, which you can use to convert the highlighted instances into blocks.

End Review

Closes the Detection toolbar and ends the detection review.
