CENTERLINE (Command)

Creates centerline geometry associated with selected lines and linear polyline segments.

Find

The following prompts are displayed.

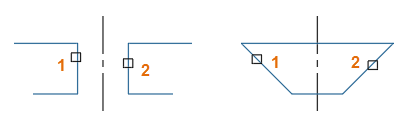

Select First Line

Select the first of the two lines or linear polyline segments.

Select Second Line

Select the second of the two lines or linear polyline segments.

Layer

Assigns new centerlines to the specified layer, overriding the current layer. Enter Use Current or "." to use the current layer. (CENTERLAYER system variable)

Note: Annotative scaling and dimension style support is not available for centerlines.
