Conduit alignment allows you to move and edit conduits based on either the top or bottom of the conduit. This enhancement provides greater flexibility and precision in managing conduit layouts, making sure that your designs meet specific alignment requirements.

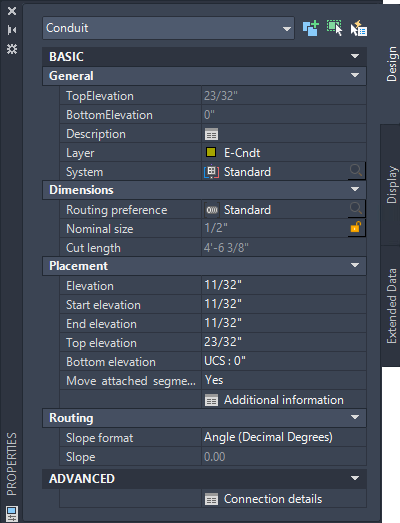

You can see the conduit alignment enhancements in the Properties palette of conduit, duct, and pipe objects.
In the Properties palette, click Design tab ,under Placement, adjust the Top Elevation and Bottom Elevation values. For example, a conduit placed on the ground will have a Bottom Elevation of 0.
