New in Project Explorer

Learn about enhancements to Project Explorer.

New in 2026.2

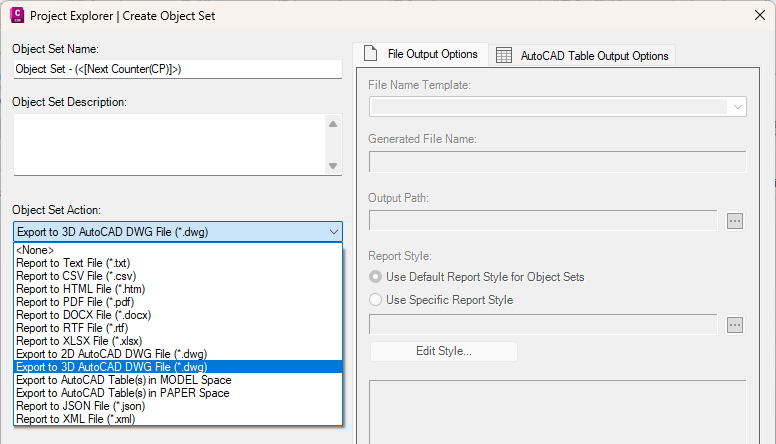

Added the ability to export 3D AutoCAD DWG files.

This option is available to the following:

• Object Set Actions list in the Create Object Set dialog box.
• Quick Report/Export context menus for all object types in Project Explorer.
• AeccRunProjectExplorerActions command.

Learn more.

New in 2026.1

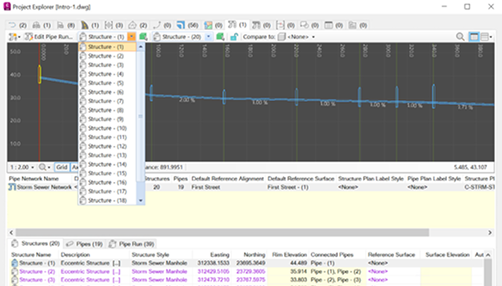

• Added pick buttons to select start and end structures from a pipe network from the viewport. Start and end structures can still be selected from their appropriate drop-down menus.
• Improved the ability to easily scroll through long lists of structures when selecting a start and end structure for the profile view in the Pipe Networks tab.

• Added new items to the context menu in the Structures List view that allow any selected structure to be assigned to the Pipe Network View as a Start or End Structure. Right-clicking a structure now offers the following additional options:
  • Assign to Pipe Network View Start Structure
  • Assign to Pipe Network View End Structure.
• Added support for transposing base object table columns into rows in reports and AutoCAD tables.
• Added support to export XML data files.
  • "XML files" added to the drop down list of file types in the Create Quick Report dialog.
  • "Report to XML File" added to the drop-down Object Set Action list in the Create Object Set dialog box.

New in 2026

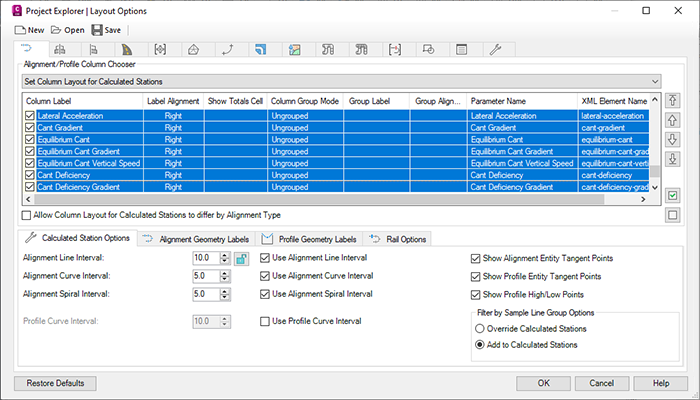

Rail CANT Information

• The following Rail CANT values have been added to the calculated stations list and are available reports and tables.
  • LateralAcceleration
  • CantGradient
  • EquilibriumCant
  • EquilibriumCantGradient
  • EquilibriumCantVerticalSpeed
  • CantDeficiency
  • CantDeficiencyGradient
  • CantDeficiencyVerticalSpeed
  • CantRatio
  • CantJerk
  • VerticalSpeed

Object Set Actions from the Command Line

• Run all Object Sets or run by index, name, or set type by entering RunProjectExplorerActions at the command line. Learn more.
