To Split a Table

Divide a table and move to a separate sheet or location.

You can split a parts list, hole, revision, or general table and move the split section to a new location or sheet.

The following example shows how to split a parts list and then move the new segment to a different sheet.

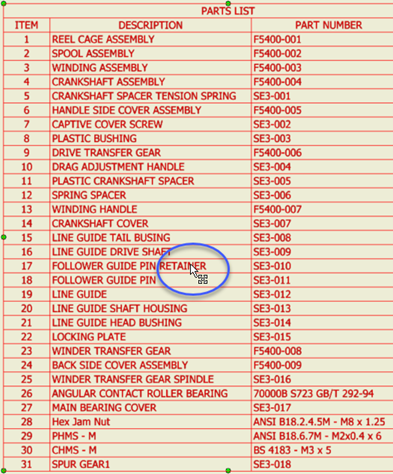

1. Move your mouse over text in the table row where you want to make the split. Right-click when the move icon appears.



2. Click Table Split Table in the context menu.



   The table splits into two segments. In the browser, the new table segment displays as a child of the parent table.

   Tip: To stitch the table back together, right-click a table segment in the display or browser and click Un-split Table. All segments are connected to the parent table.

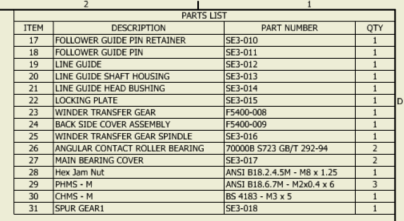

3. To move the split section to a new sheet:

   • Expand PARTS LIST in the browser.

   • Drag the split table to the area just below the new sheet label.



4. Double-click the new sheet in the browser to make it active and adjust the split table location.



Editing a split table

To edit properties for all table segments, edit the parent segment. After you save the edits, all segments of a split table respect your changes.

To change properties for a specific child segment, edit the segment. All property overrides applied to child segments are preserved until the table is unsplit.
