Manually add a centerline for a pattern of features

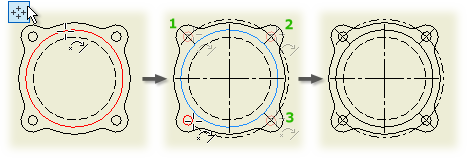

  1. On the ribbon, click Annotate tab Symbols panel Centered Pattern .
  2. Select an edge to define the center of the pattern.
  3. Click the first feature of the pattern.
  4. Continue clicking features until all desired features are added.
    Tip: To create a closed circular centerline, click features in sequence, going clockwise or counterclockwise.
  5. Right-click, and then select Create to accept the displayed centered pattern.

    The operation remains active so that you can add other centerlines. Click [ESC] to finish the operation.
