Use the Constrain command to specify intended motion ratios between assembly components.

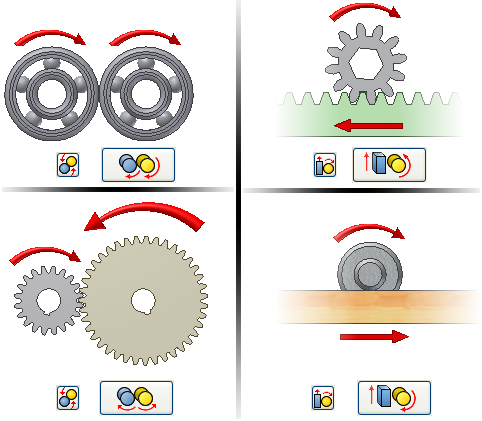

A Motion constraint maintains rotational or rotational-translational movement between components. You can specify the ratio or determine the ratio by picking geometry.

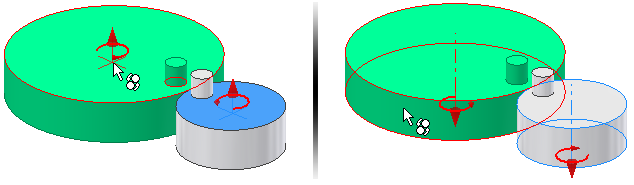

To specify the ratio for rotational components, select a circular face or edge on each component. To calculate the ratio based on relative size, select a cylindrical face on each component.

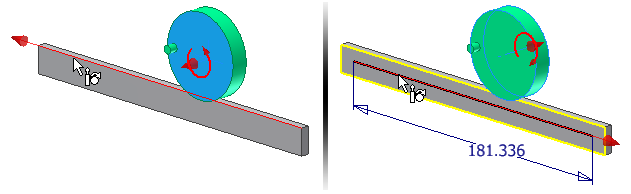

To specify the distance for rotational-translational components, select a circular face or edge on the rotational component and a linear edge on the translational component. You can calculate the distance based on circumference and length. Select a cylindrical face on the rotational component and a linear edge or sketched line on the translational component.
To begin, place the components to constrain in an assembly file.
On the ribbon, click Assemble tab Relationships panel
Constrain
.
In the dialog box, click the Motion tab.
Click Rotation or Rotation-Translation.
Select the first component in the graphics window. Select a circular face or edge to specify the ratio or distance. Select a cylindrical face to calculate the ratio or distance.
Select the select the second component in the graphics window. Select a cylindrical face or linear edge. The ratio or distance is automatically calculated and entered into the field.
If applicable, select Forward or Reverse to change rotation direction.
Specify the motion one of the following ways:
Click Apply to continue to place constraints or click OK to create the constraint and close the dialog box.
