Edit model dimensions from a drawing

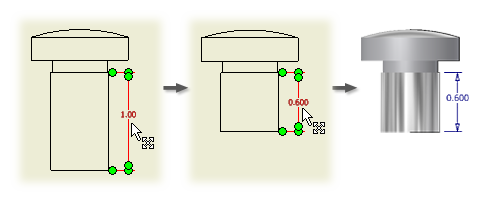

  1. Right-click the dimension to be changed, and select Edit Model Dimension from the menu.

  2. Enter the new dimension in the edit box.

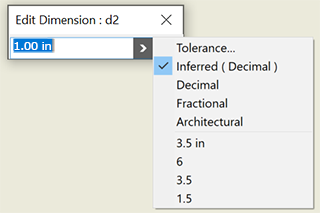

  3. To change the dimension tolerances, click the flyout in the edit box, and select Tolerance...

Note: To turn off the ability to edit model dimensions from the drawing go to Tools tab Options panel Application Options Drawing tab and deselect Enable part modification from within drawings.
