About Data Exchange for Inventor

What's New: 2023, 2026.3

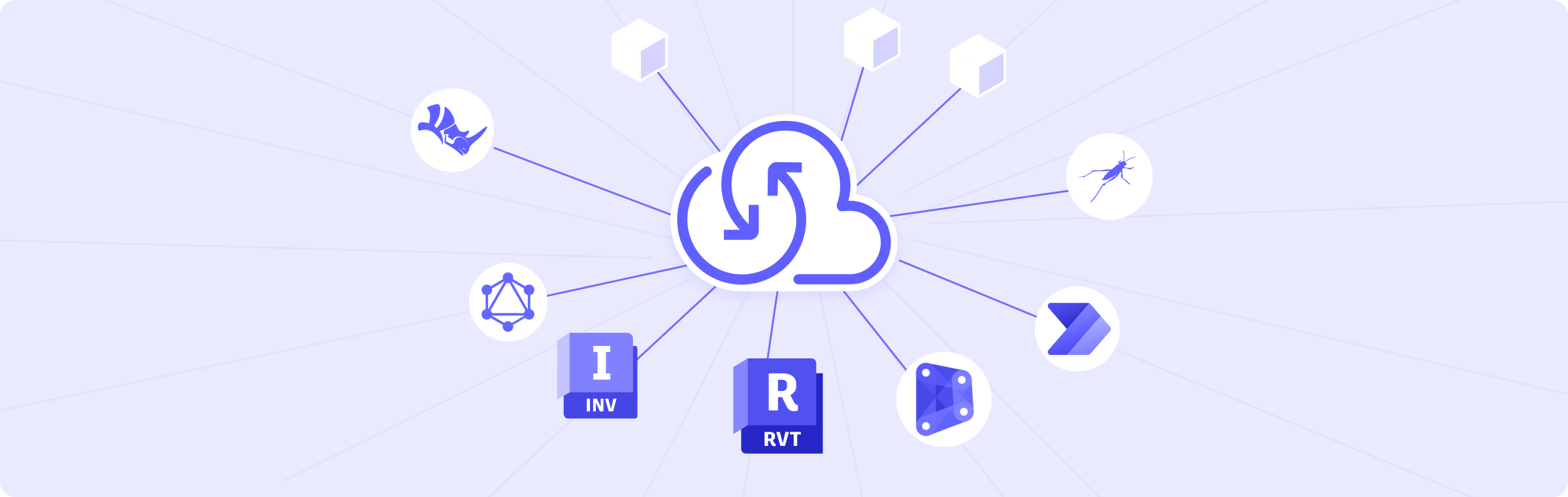

To learn about working with Data Exchange Connectors see:

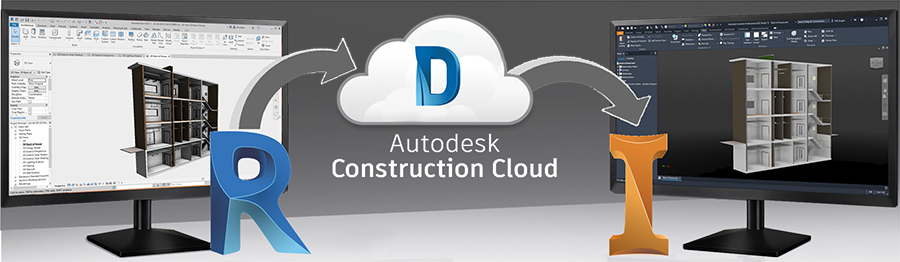

Regarding Revit Data Exchanges to load in Inventor

Important: The data exchange creation process uses the materials assigned in Revit. However, it doesn't use color or material overrides set by view filters or category overrides. If you see differences in visual results between Revit and Inventor it may be due to these settings. Data Exchanges can only be used with Revit 2023 and later data.

Minimize the Number of Revit Elements to be Imported

Revit files can be very large. You will probably not want to import an entire building! Instead, you should import only the Revit elements that other Inventor components depend-upon, and perhaps a few other elements for visual context. "Depend-upon" means you are referring to that element from a new Inventor component that you are making, for example, projecting the element's geometry into a sketch of the new component. Or, constraining a new component to a face of the imported Revit element. It's likely that there will be very few of these elements, relative to the total number of elements in the building.

For more on the process of reducing the number of elements, see Best Practices for AnyCAD Revit. It is recommended that you collaborate with your Revit team members so the Exchange packages can be kept to only essential information.
