Suppressed Annotations

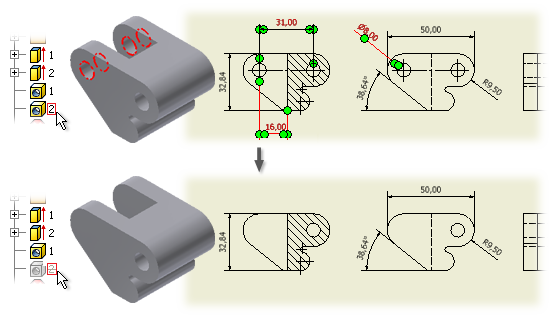

Annotations in drawings are suppressed when the associated component is suppressed or invisible.

Components may be made invisible in the assembly (in a design view) or in the drawing.

Some guidelines to help you understand why an annotation is no longer visible in a drawing:

• If a dimension is attached to multiple features or edges, the dimension is suppressed if any of its target features or components are suppressed or made invisible.

• If a feature is suppressed or a component is made invisible, the attached annotation does not appear.

  For example, a center mark attached to a hole center becomes suppressed when the hole feature is suppressed. Any dimension attached to the center mark is also suppressed.

• Some leaders also have secondary leaders that reference other features or components than the primary leader. If only a primary leader is present and attached to a suppressed feature or invisible component, it is suppressed.

  If multiple leaders exist, and the primary leader is attached to a suppressed feature or invisible component, it is not suppressed.
