To Customize the Tube & Pipe Folder Structure

Specify how Tube & Pipe creates files and folders.

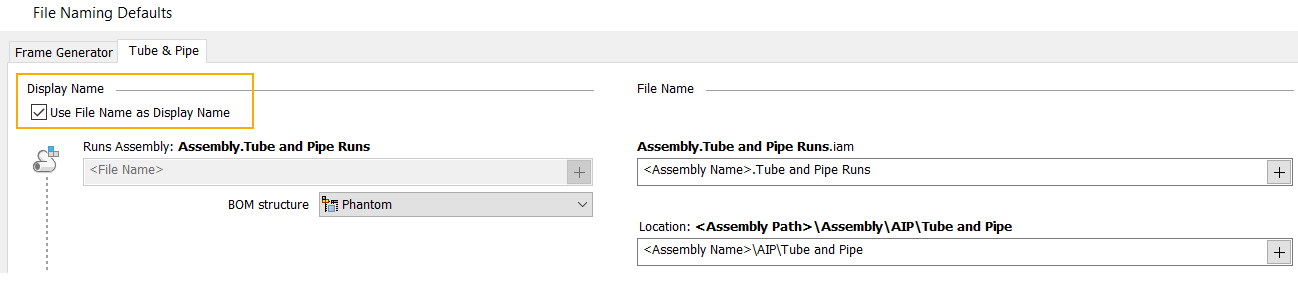

To use the file name for the name of the browser node: Select Use File Name as Display Name.
To configure a naming scheme for each type: Click the plus sign next to each type and make a selection. Click the plus sign again to add additional folders.

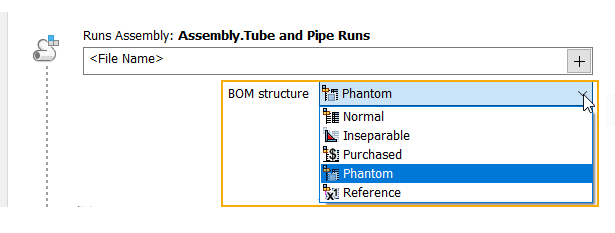

To specify a Bill of Materials structure type: Click the BOM structure drop-down arrow and make a selection.
To change the default decimal marker: select a decimal marker from the Unit Decimal Marker drop-list.

Note: While manually defining Runs assembly file names, it is recommended to use the following attributes for the child components to inherit the file name:

Runs Assembly Name
Run Assembly Name
Hose Assembly Name
