Translators Enhancement for 2026
Learn about new export formats and updates to existing import/export formats.
AIT Integration
This version of Inventor introduces a new ATF solution to enhance translator productivity and maintain consistency with the original product. The affected workflows and file formats include:
Import:
- Catia V4
- Catia V5
- NX
- SolidEdge
- Solidworks
Export:
- Catia V5
Affected file versions by ATF new solution:
| Format | Read Version | Write Version |
|---|---|---|
| CatiaV4 |  |
|
| CatiaV5 | R10 to V5-6R2024 (R34) | R14, R19, R20, R21, V5-6R2012 ~ V5-6R2024 |
| NX | Unigraphics V10 to NX 11, 12, NX 1847, 1872, 1899, 1926, 1953, 1980, 2007, 2206, 2212, 2306, 2312, 2406 Series | NX 5, 1980, 2212 |
| SolidEdge | 10 to 2019, 2020, 2021, 2022, 2023, 2024 | |
| Solidworks | 2006 to 2024 |
IFC 4x3 Export
You can export IFC 4x3 files when using the RVT or RFA Export workflows. For more information see To Export a Model to RVT (Revit format) or, for RFA, see To Export Building Components.
For more information about IFC for Inventor, see About Industry Foundation Classes for Inventor and To Import IFC data as an AnyCAD Model.
Product Manufacturing Information (PMI)
PMI can be included when exporting top level assemblies in JT and STEP formats.

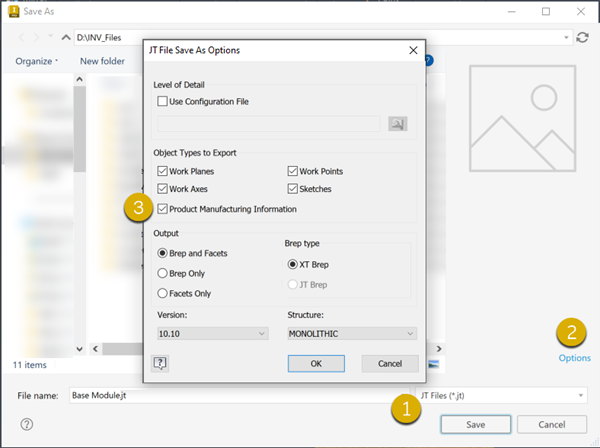

- JT format

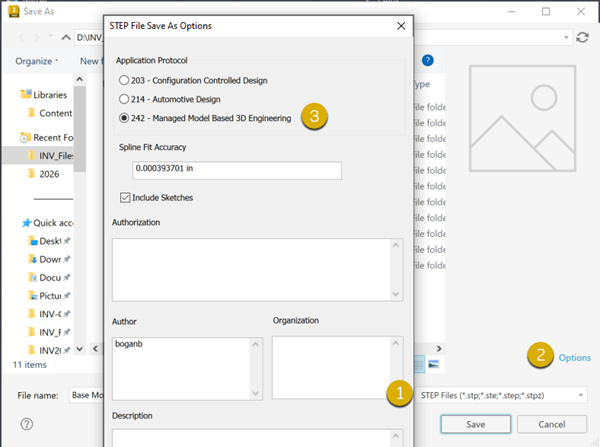

- STEP format
