View Annotation and View Label Properties
In this release of Inventor, new view label properties were added, and default View Label and Default View Annotation are changed for several views.
The enhancements include:
The Default View Label and Default View Annotation are changed for:
- Auxiliary View
- Section View
- Detail View
The existing list of View Label Properties was extended. The following items were added:
- PARENT SHEET ZONE - sheet zone of a parent view
- VIEW SHEET NAME - this view sheet name
- VIEW SHEET INDEX - this view sheet index
- VIEW SHEET ZONE - sheet zone of this view

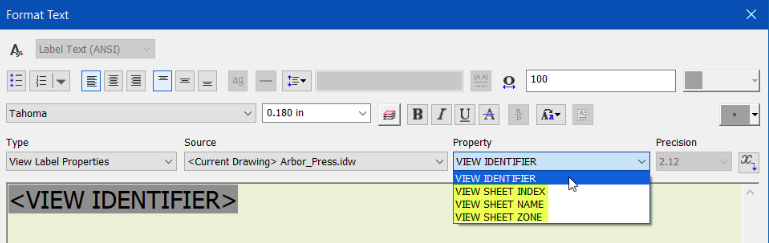

These annotations are now enabled in the Format Text dialog for the parent view.
Update View Preferences in Standard Style
The View Preferences tab in the Styles Editor has been redesigned for the Auxiliary, Detail and Section views. The following changes were made:
Default View Label and Default View Annotation were changed
View Labels and View Annotations defaults were updated for all standards except GOST
View Label Defaults (Defaults ANSI)
View Annotation Defaults (Defaults ANSI)
If the parent and child view exist on the same sheet, their values for sheet name and index are not shown
For more information, see Add a transition symbol and Style and Standard Editor - Transition Symbol Style Reference.
