CATLegWeight : FloatController

CATLegWeight : FloatController {7c125bf5,3a880ece}

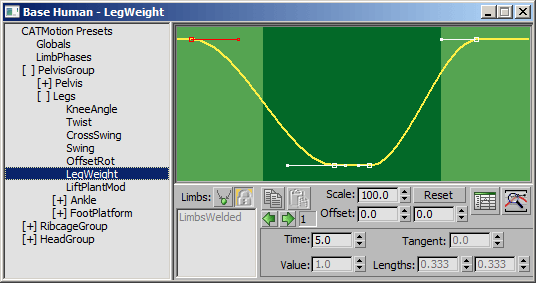

This is a CATMotion controller used in the animation of Legs in 3ds Max CAT.

Other controllers used for CATMotion Limb Animation include CATKneeAngle : FloatController and CATLiftPlantMod : FloatController

Constructor:

Class instances not creatable by MAXScript

Aliases:

CATLegWeight LegWeight

Properties:

 <CATLegWeight>.CATBranch : maxObject

Get/set the Branch controller.

 <CATLegWeight>.LimbData (CATLimbData) : maxObject

Contains the LimbData controller object.

 <CATLegWeight>.LiftStartTime : float

Get/set the Lift Start Time value.

 <CATLegWeight>.LiftEndTime : float

Get/set the Lift End Time value.

 <CATLegWeight>.PlantStartTime : float

Get/set the Plant Start Time value.

 <CATLegWeight>.TroughTanLength (PlantEndTime) : float

Get/set the Through Tangent Length value.
