Rollout User-Interface Controls Types

The following list contains the user-interface control types you can choose from to construct your rollout.

	angle slider spinner button checkbutton mapbutton materialbutton pickbutton checkbox colorpicker listbox multilistbox dropdownlist	combobox edittext groupBox hyperLink label progressbar radiobuttons bitmap imgTag SubRollout curvecontrol popUpMenu (not displayed) timer (does not display in rollouts)

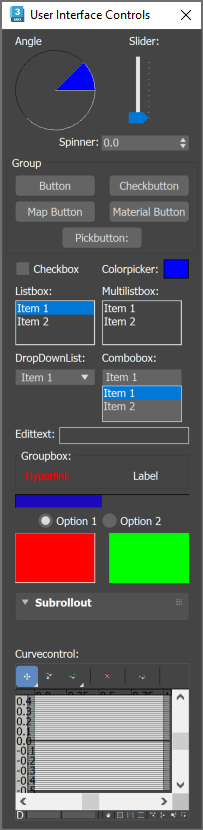

The following script was used to create the rollout image above:

EXAMPLE SCRIPT:

try(destroyDialog allControls )catch()
rollout subRollout1 "Subrollout" ( )
    rollout allControls "User Interface Controls" (
    angle theAngle "Angle" width:80 across:2 degrees:45 align:#left
    slider theSlider "Slider:" orient:#vertical
    spinner theSpinner "Spinner:"
    group "Group" (
    button theButton "Button" across:2 width:80 align:#left
    checkbutton theCheckbutton "Checkbutton" width:80 align:#right
    mapbutton theMapButton "Map Button" width:80 across:2 align:#left
    materialbutton theMatButton "Material Button" width:80 align:#right
    pickbutton thePickbutton "Pickbutton:" width:80)
    checkbox theCheckbox "Checkbox" across:2 offset:[0,2]
    colorpicker theColorpicker "Colorpicker:"
    listbox theListbox "Listbox:" items:#("Item 1","Item 2")\
    height:3 width:80 across:2
    multilistbox theMLBox "Multilistbox:" items:#("Item 1","Item 2")\
    height:3 width:80
    dropdownlist theDDL "DropDownList:" items:#("Item 1","Item 2")\
    width:80 across:2
    combobox theCombobox "Combobox:" items:#("Item 1","Item 2")\
    height:3 width:80
    edittext theEdittext "Edittext:"
    hyperlink theHyperlink "Hyperlink" url:"http://www.autodesk.com"\
    color:red across:2 offset:[10,20]
    label theLabel "Label" offset:[0,20]
    groupBox theGroupbox "Groupbox:" height:40 offset:[0,-40] width:174
    progressbar theProgressbar "Progressbar:" value:50
    radiobuttons theRadiobuttons labels:#("Option 1","Option 2")
    bitmap theBitmap "Bitmap" width:80 height:50 offset:[0,0]\
    bitmap:(bitmap 80 50 color:red) align:#left across:2
    imgTag theImgTag "Bitmap" width:80 height:50 offset:[0,0]\
    bitmap:(bitmap 80 50 color:green) align:#right
    SubRollout theSubrollout "Subrollout" height:50
    curvecontrol theCurvecontrol "Curvecontrol:" height:150
)
createDialog allControls 200 800
AddSubRollout allControls.theSubrollout subRollout1
