For electrical systems, panel schedules display information about the panel, the circuits connected to the panel, and their corresponding loads.
- Analyze tab
Reports & Schedules panel
(Panel Schedules)

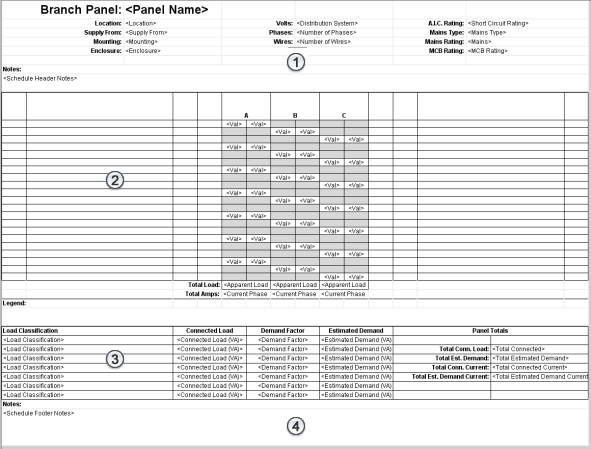

A panel schedule has 4 parts:
header,
circuit table,
loads summary, and
footer.
Starting with Revit 2026 version, Browser Organization is enabled for Panel Schedules.The default scheme is set to All.

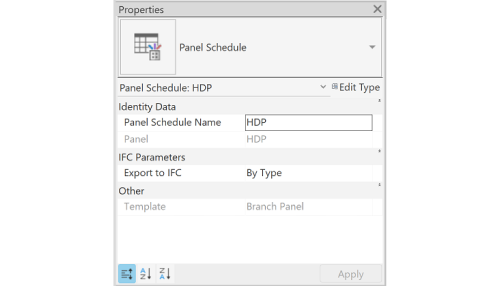

The Panel Schedules shows the Panel Name under the Identity Data category.

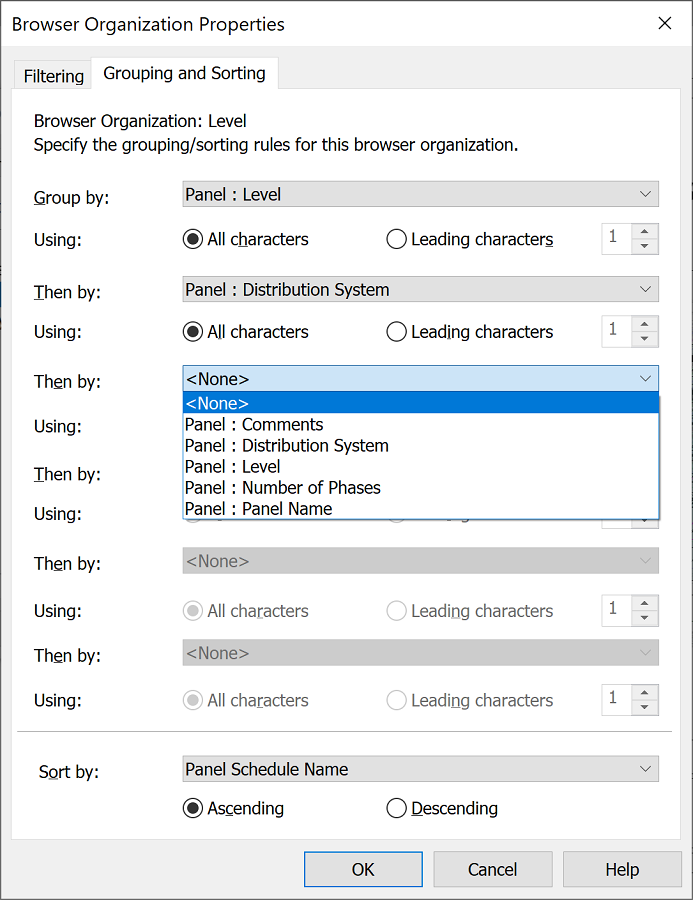

You can sort by panel's Schedule Name, Distribution System, Comments, Level, Number of Phases, use Project Parameters and Shared Parameters on panel schedules to group and filter, use Comments of panels to group and filter, and filter the panel schedules by Number of Phases.
Some parameters of Electrical Equipment are available for grouping, sorting and filtering panel schedules.
