Learn how to select and move dimensions, segment length labels, and tags embedded in schematic and realistic bending details.

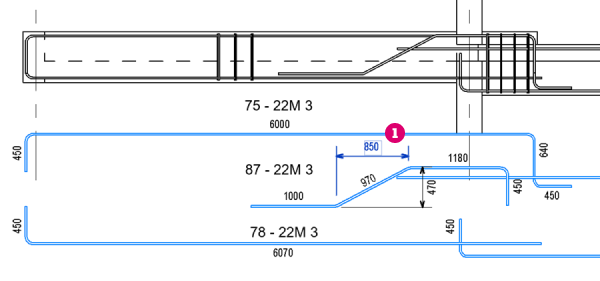

To select and move annotations in bending details
- Hover the cursor over an annotation you want to select.
- Press Tab and click to select the annotation.
- Drag the annotation or use the Move command
.
The overridden position of annotations is automatically reset when changing the rebar shape.
To manually reset the position of all annotations, select the bending detail, go to Modify | Bending Detail tab
Annotations panel and click
(Reset Position).
