You define the crank lengths for a rebar type with the Rebar Crank Lengths dialog.
Access the dialog by clicking the Crank Lengths Edit button in Rebar Type Properties. You can find diagrams of these parameters in the images below the following table.
| Name | Description |
|---|---|
| Crank Type Name | This is a self-populated list of rebar crank types defined in the project. |
| Auto Calculation | Clear this checkbox to override the automatic calculation of the crank dimensions. and the Bar Diameter for Length. |
| Crank Slope 1: | Displays the crank slope, as defined in the crank type. Uncheck Auto Calculation to override this value for the rebar type. |
| Angled Length | Displays the crank angled length. |
| Straight Length | Displays the crank straight length. |
| Crank Offset | Displays the crank offset. When auto calculation is checked, Crank Offset = Crank Offset Multiplier * Model Bar Diameter |
| Length | Displays the crank length. When auto calculation is checked, Length = Length Multiplier * Bar Diameter |

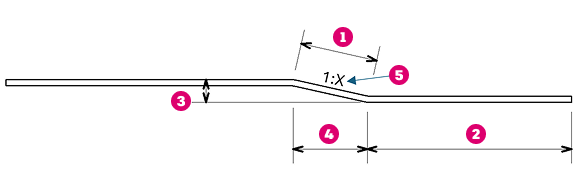

Crank Angled Length
Crank Length
Crank Offset
Crank Straight Length
Crank Slope 1:X
