Split Rebar Sets

Improved flexibility in defining reinforcement patterns. Split a set into multiple sets to quickly adjust more granular rebar patterns.

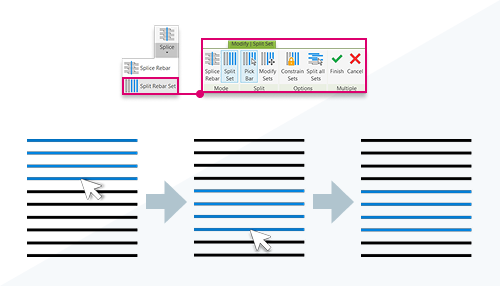

Split one or several rebar sets at the selected bar position or intersecting line reference.

You can choose to constrain the resulting sets, as well as split one or all the sets in a splice chain.

• Modify | Structural Rebar Splice panel (Splice) drop-down (Split Rebar Set).

OR

• Modify | Splice Rebar Mode panel (Split Rebar Set).

Note: Splitting is available for shape driven rebar sets only. Area reinforcement, path reinforcement, and free form rebar are currently not supported.

For additional information, see Split Rebar Set.
