Click Materials from the Setup tab:

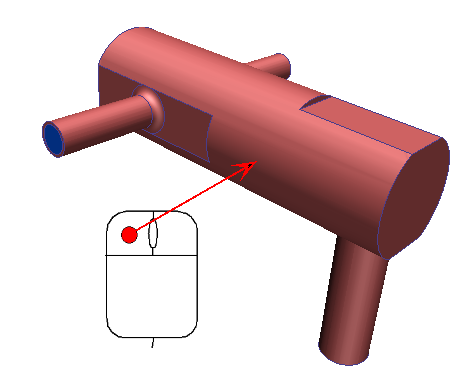

Select the Pipe wall by left clicking on it:

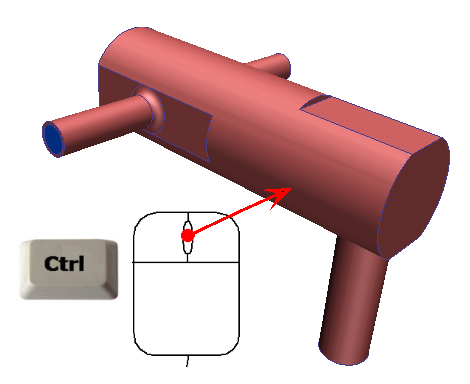

Hide the pipe wall by middle clicking on it while holding Ctrl.

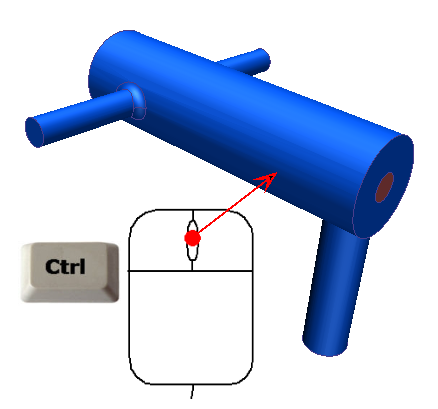

Hide the flow part by middle clicking on it while holding Ctrl:

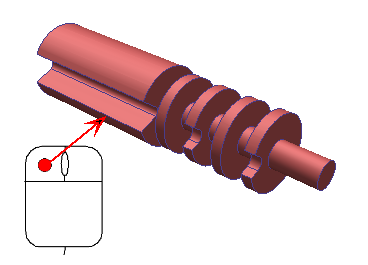

Select the divider part by left clicking on it:

Open the Materials quick edit dialog in ONE of the following ways:

• Click Edit from the toolbar:

• Click Edit from the Materials context panel:

On the Material quick edit dialog, Type = Solid.

Name = Copper

Click Apply.

For more about solid materials
