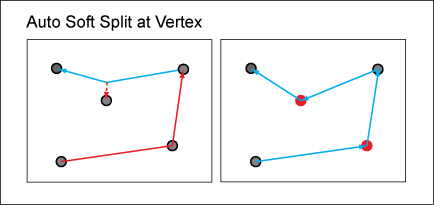

The AutoSoftSplitAtVertex rule group splits a line at a vertex when it is at the same location as a utility point. Depending on user data and use cases, this rule group can optionally be enabled.
- AutoSoftSplitAtVertex_BIU
- AutoSoftSplitAtVertex_AIU
The rule group applies to Utility line feature classes.
AutoSoftSplitAtVertex_BIU
|
Name |
AutoSoftSplitAtVertex_BIU |
|
Classification |
Optional feature rule. |
|
Location |
Assembly: Autodesk.Map.IM.Utilities.dll Classname: Autodesk.Map.IM.Utilities.FeatureRules.UtilityLineFeatureRules |
|
Type |
Client-side Before Insert (BI); Before Update (BU). Is System. Is Row. |
|
Description |
Looks for utility points at the vertices and soft splits the line if utility points are found. |
|
Execute Column |
GEOM |
|
Dependency |
Member of a rule group. The rule groups only works if the AutoSoftSplitLines rule group is enabled for the corresponding utility point feature class. See also AutoSoftSplitLines rule group. |
AutoSoftSplitAtVertex_AIU
|
Name |
AutoSoftSplitAtVertex_AIU |
|
Classification |
Optional feature rule. |
|
Location |
Assembly: Autodesk.Map.IM.Utilities.dll Classname: Autodesk.Map.IM.Utilities.FeatureRules.UtilityLineFeatureRules |
|
Type |
Client-side After Insert (AI); After Update (AU). Is System. Is Row. |
|
Description |
Looks for utility points at the vertices and soft splits the line if utility points are found. |
|
Dependency |
Member of a rule group. The rule groups only works if the AutoSoftSplitLines rule group is enabled for the corresponding utility point feature class. See also AutoSoftSplitLines rule group. |
