Fabrication Data in Project Documents

Include fabrication data in BOM templates and prototype headers.

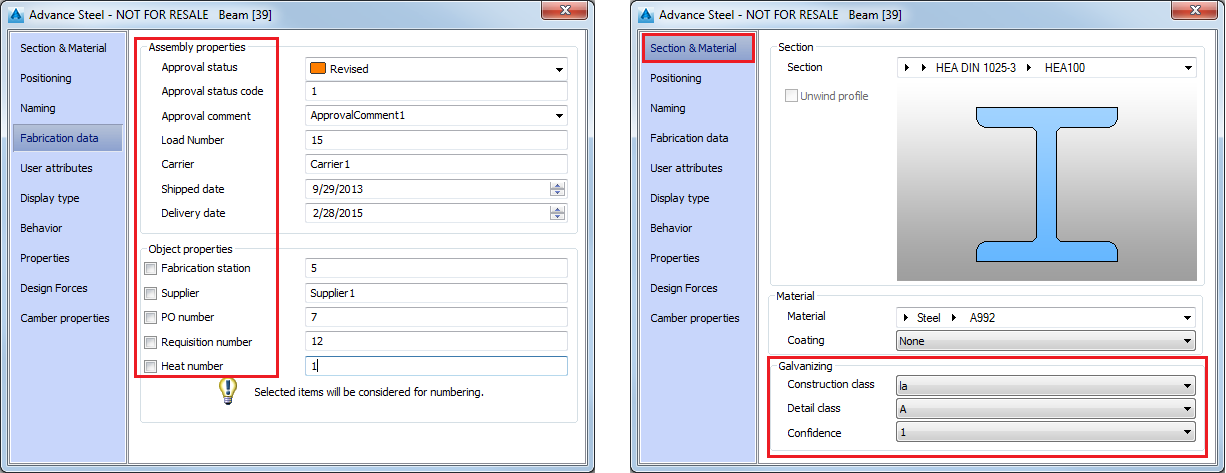

Object fabrication data parameters can be included in:

1. Templates for external Bills of Material:
   • In object lists (MainPart, Single part, etc.):

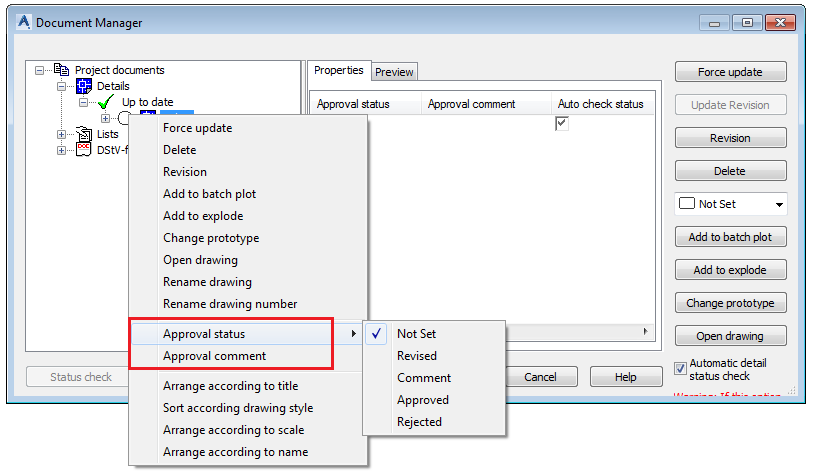

   • Drawing approval statuses and drawing approval comments can be used in drawings lists:



2. Templates for Bills of Material that are placed on drawings.

3. In prototype headers.

   List of available attributes for prototype headers:

   APPROVAL_STATUS_ASSEMBLY	Approval Status
   APPROVAL_STATUS_CODE_ASSEMBLY	Approval Status Code
   APPROVAL_COMMENT_ASSEMBLY	Approval Comment
   CARRIER	Carrier
   LOAD_NUMBER	Load Number
   SHIPPED_DATE	Shipped Date
   DELIVERY_DATE	Delivery Date
   GALVANIZING_CONSTRUCTION_CLASS	Construction Class
   GALVANIZING_DETAIL_CLASS	Detail Class
   GALVANIZING_CONFIDENCE	Confidence
   FABRICATION_STATION	Fabrication Station
   SUPPLIER	Supplier
   PONUMBER	Po Number
   REQUISITION_NUMBER	Req Number
   HEAT_NUMBER	Heat Number
