Connect Compound Object

The Connect compound object lets you connect two or more objects between "holes" in their surfaces. To do this, you delete faces in each object to create one or more holes in their surfaces, position them so that the holes face one another, and then apply Connect.

Select an object. > Create panel > (Geometry) > Compound Objects > Object Type rollout > Connect
Default menu: Select an object. > Create menu > Compound > Connect
Alt menu: Select an object. > Objects menu > Compound Objects > Connect

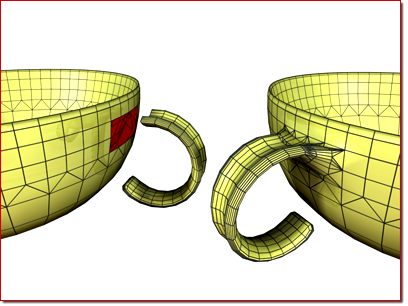

Left: Before connect

Right: After connect

Note: Connect is not suited to NURBS objects, because they convert into many separate meshes instead of one big mesh. The workaround is simple: apply a Weld modifier to the NURBS object (thus converting it to a mesh and zipping up its seams) before using it as part of a connect.

Connect generates the best mapping coordinates it can for the bridges between the various holes in the meshes. While some ideal cases, such as a cylinder above another cylinder, can generate good UVW map interpolations, most cases cannot. You'll need to apply mapping to the bridge faces with a UVW Map modifier.

Vertex colors, on the other hand, interpolate smoothly.

Notes:

You can use Connect on objects that have multiple sets of holes. Connect will do its best to match up the holes between the two objects.
The mapping coordinates assigned to the original two objects are maintained to the extent possible. You might find irregularities in the bridged area, depending on the complexity and difference between the two original sets of mapping coordinates and the types of geometry.

Procedures

To create a Connect object:

Create two mesh objects.
Delete faces on each to create holes where you want to bridge the objects.

Position the objects so that the normals of the deleted faces of one object point toward the normals of the deleted faces of the other object (assuming that deleted faces could have normals).
Select one of the objects. On the Create panel, with (Geometry) active, choose Compound Objects from the drop-down list. On the Object Type rollout, turn on Connect.
Click the Pick Operand button, and then select the other object.
Faces are generated connecting the holes in the two objects.
Adjust the connection with the various options.

Example: To connect two cylinders:

Create a cylinder with a radius of 15 and a height of 30. Use the default settings for the remaining parameters.
Create a second cylinder centered on the first with a radius of 30, a height of 30, and 13 sides. (The fewer sides are to demonstrate the mesh interpolation in the connection.)
Move the first, narrower cylinder straight up along Z so its bottom cap is about 15 units above the top cap of the larger cylinder.
Convert both cylinders to editable meshes.
Delete the lower cap of the upper cylinder, and the upper cap of the bottom cylinder. (Hint: Go to Editable Mesh (Polygon) mode, select each end in turn, and then press the Delete key.)
Exit sub-object mode, select the lower cylinder, and click Connect.
Click the Pick Operand button, and then click the upper cylinder.

New faces are created that span the openings in the two cylinders.

Example continued: To try out some options and create animation:

Go to the Modify panel and increase the Segments value to 5 or more.

As the number of segments increases, the connection becomes curved.
Set the Tension value to 0. This straightens the connecting surface. Increase the value of Tension to 1, and then return it to 0.5.
Try different combinations of the Bridge and Ends options.
Select the upper cylinder, turn on , and apply various transforms at different frames.
Play the animation.

Interface

Pick Operand rollout

Pick Operand

Click this button to connect an additional operand to the original object.

For example, you might begin with a single object with two holes, and arrange two additional objects, each with one hole, outside of those holes. Click the Pick Operand button and select one of the objects, which is connected, and then click Pick Operand again and select the other object, which is connected. Both connected objects are added to the Operands list.

Reference/Copy/Move/Instance

Lets you specify how the operand is transferred to the compound object. It can be transferred either as a reference, a copy, an instance, or moved, in which case the original is not left behind.

Note: Connect works only with objects that are capable of being converted into editable surfaces, such as editable meshes.

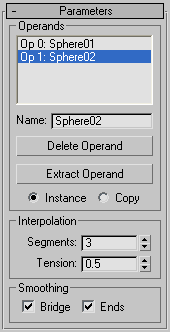

Parameters rollout

Operands group

[list of operands]

Displays the current operands. Select an operand to rename, delete or extract by clicking it in this list.

Name

Renames a selected operand. Type in a new name, and then press Tab or Enter.

Delete Operand

Deletes a selected operand from the list.

Extract Operand

Extracts a copy or an instance of the selected operand. Choose an operand in the list to enable this button.

Note: This button is available only in the Modify panel. You can't extract an operand while in the Create panel.

Instance/Copy

Lets you specify how the operand is extracted: as either an instance or a copy.

Interpolation group

Segments

Sets the number of segments in the connecting bridge.

Tension

Controls the curvature in the connecting bridge. A value of 0 provides no curvature, while higher values create curves that attempt to more smoothly match the surface normals on either end of the connecting bridge. This spinner has no apparent effect when Segments is set to 0.

Smoothing group

Bridge

Applies smoothing between the faces in the connecting bridge.

Ends

Applies smoothing between the faces that border the old and new surfaces of the connecting bridge and the original objects. When turned off, 3ds Max assigns a new material ID number to the bridge. The new number is one higher than the highest ID number assigned to either of the original objects. When on, the ID number is taken from one of the original objects.

Note: If both Bridge and Ends are on, but the original objects contain no smoothing groups, then smoothing is assigned to the bridge and to the faces bordering the bridge.

Display/Update rollout

Display group

Determines whether the shape operands are displayed.

Result Displays the result of the operation.
Operands Displays the operands.

Update group

These options determine when the projection for the compound object is recalculated. Because complex compound objects can slow performance, you can use these options to avoid constant calculation.

Always The object is updated constantly.
When Rendering The object is recalculated only when the scene is rendered.
Manually Activates the Update button for manual recalculation.

Update

Recalculates the projection.
