Spline Relax Modifier
The Spline Relax modifier smooths out splines by relaxing knot positions and/or handles.
- Select a spline. >
Modify panel > Modifier List > Object Space Modifiers > Spline Relax Modifier
Tip: This modifier is compatible with soft selections.

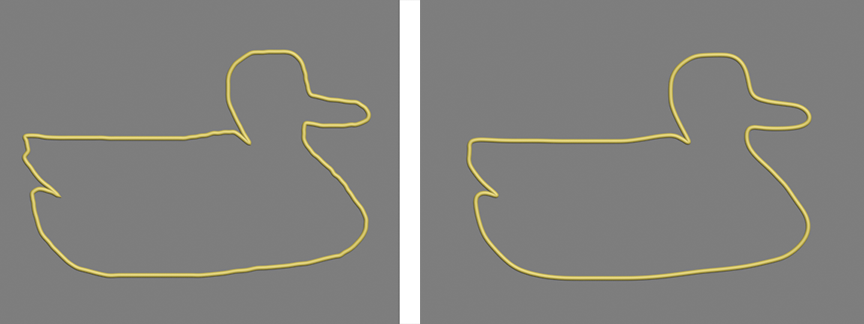

Freehand spline illustration of a ducky, before (left) and after (right) application of Spline Relax modifier.
Interface
Relax rollout
Show Knots
Displays the resulting knots.
Amount
Sets the amount of relax applied with each iteration, from 0 to 1.
Iterations
Sets the number of times the relax function is applied.
Adjust Knots
Applies the relax function to each knot position.
Adjust Tangents
Applies the relax function to knot tangent handles.
Use Soft Selection
Scales the relax function according to the knot soft selection amount. If there is no soft selection, the option is ignored.
