Metaball Sample Script

Description

The following example shows a sample Metaball script using the Parray particle system.

Can Be Used With:

Should be used in a Script_Operator.

Effect:

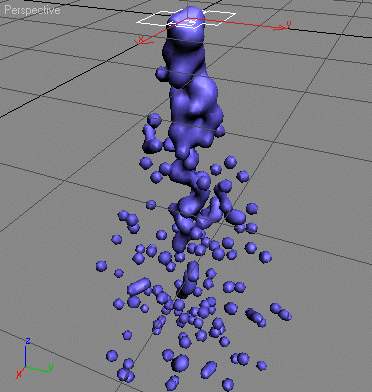

In the Proceed handler, a new Mesh object is created with a vertex at each particle. Then, a PArray classical particle system is created and used to generate a metaball mesh out of all vertices of the supplied mesh. Now, using a Mesher compound object, a snapshot of the metaball is made and used as the shape of the first particle.

EXAMPLE

   --The ChannelsUsed handler defines the channels
   --to be made available to the script.
   --For the list of all channels, see
   --Interface: MaxscriptParticleContainer
   --The parameter pCont passed to the handler
   --contains the Particle Container the script is applied to
   on ChannelsUsed pCont do
   (
       pCont.usePosition = true
       pCont.useTime = true
       pCont.useSpeed = true
       pCont.useShape = true
   )

   --The Init handler is called on initialization.
   --It is not used in this case.
   on Init pCont do
   (
   )

   on Proceed pCont do
   (
       --Get the start and end times
       t1 = pCont.getTimeStart() as float
       t2 = pCont.getTimeEnd() as float

       --As long as there are particles
       if (pCont.NumParticles() > 0) then
       (
           --Disable screen redraws to keep speed up
           with redraw off
           (
               -- create an empty mesh
               nMesh = editable_mesh()
               -- Set the number of vertices and faces to the
               -- number of particles.
               nMesh.numVerts = pCont.NumParticles()
               nMesh.numFaces = pCont.NumParticles()
               --We will make a single vertex for each particle
               for i in 1 to pCont.NumParticles() do
               (
                   -- Time for the particle to travel at this integration step
                   timeStep = t2 - (pCont.getParticleTime(i) as float)
                   -- Speed is added to foresee the particle position at the end
                   -- of the integration step
                   nMesh.verts[i] = pCont.getParticlePosition(i) + timeStep * pCont.getParticleSpeed(i)
                   -- The face references the same vertex 3 times!
                   nMesh.faces[i] = [i,i,i]
               )

               -- create PArray with particles on vertices of the mesh
               a = PArray()
               a.speed = 0
               a.formation = 2-- at all vertices
               a.quantityMethod = 1--use Total
               a.Total_Number = 1--just initializing
               a.viewPercent = 100
               a.Emitter_Start = 0f
               a.Emitter_Stop = 0f
               a.subsampleCreationTime =off
               a.Display_Until = 2000f
               a.life = 2000f
               a.Growth_Time = 0f
               a.Fade_Time = 0f
               a.particleType = 1--metaballs
               a.metaballAutoCoarsness =off
               a.metaballRenderCoarsness = 0.9
               a.metaballViewCoarsness = 0.9
               a.Metaparticle_Tension = 1.0
               a.size = 5
               a.Total_Number = pCont.NumParticles()--use particles count
               a.emitter = nMesh

               -- acquire the metaball mesh from the PArray
               mshr = mesher() --create a Mesher Compound object
               mshr.pick = a --get the PArray
               metaballMesh = snapshot mshr --make a snapshot of the Mesher
               delete a --delete the PArray
               delete #(mshr, nMesh) --delete the Mesher and our mesh

               -- speed is added to foresee the particle position at the end
               -- of the integration step
               timeStep = t2 - (pCont.getParticleTime(1) as float)
               spaceOffset = pCont.getParticlePosition(1) + timeStep * pCont.getParticleSpeed(1)
               -- adjust vertex location to center around the first particle
               for i in 1 to metaballMesh.verts.count do
               (
                   move metaballMesh.verts[i] (-spaceOffset)
               )
               --Create an empty mesh to assign to all particles
               emptyMesh = editable_mesh()
               --Assign the empty mesh to all particles.
               --This makes them invisible
               pCont.setShapeForAllParticles(emptyMesh.mesh)
               --First particle carries all the mesh data
               pCont.setParticleShape 1 metaballMesh.mesh
               --Delete the empty mesh and the snapshot
               delete #(emptyMesh, metaballMesh)
           )
       )
   )

   --The Release handler is used to do cleanup work.
   --Not used in this case.
   on Release pCont do
   (

   )
