Dynamic Geometry Attributes Options

Use the Dynamic Geometry Attributes Options window to create and connect DGA nodes for one or more selected meshes.

To open the window, select a deformed mesh and choose Deform > Dynamic Geometry Attributes….

When you create a DGA graph, the window loads the dynamicGeometryAttributes and pointValues plug-ins if they are not already loaded.

Selection behavior

Select at least one deformed mesh before you create a DGA graph. If no mesh is selected, Maya displays a warning when you click Create or Apply.

For one selected mesh, Base Mesh From and Deformed Mesh From list the mesh's available deformation states. The lists include the original shape and identify the final deformer.

For multiple selected meshes, the lists are based on the first-selected mesh. If the meshes have matching deformer chains, Maya applies the selected states in the same way to each mesh. If the chains differ, Maya applies the selected states to the first mesh and uses the original shape and final deformer for the remaining meshes.

Settings and geometry source

Common Attributes

Control Description

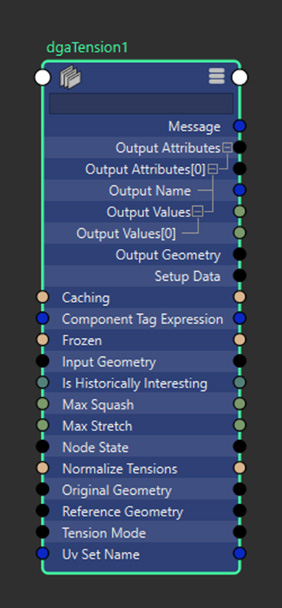

Tension Creates a dgaTension node that measures squash and stretch between the selected geometry states.

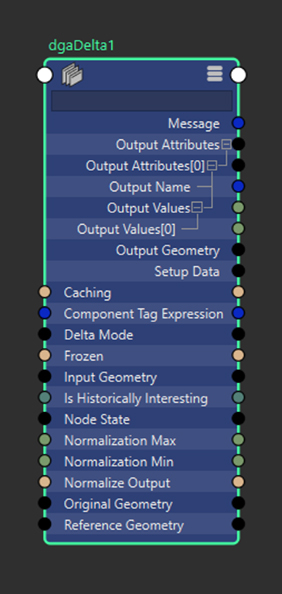

Delta Creates a dgaDelta node that measures changes in vertex position or vertex normal angle between the selected geometry states.

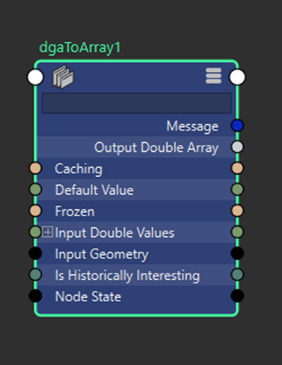

Point Value Array Creates a pointValueArray node that converts per-point values to an array for downstream nodes.
Point Values Creates a pointValues node that exposes per-point values as texture outputs. The setup also includes Point Value Array because pointValues consumes its array output.

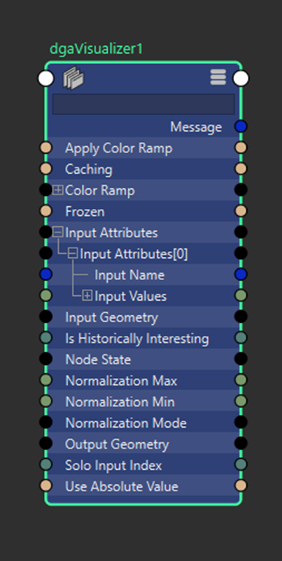

Visualizer Creates a dgaVisualizer node that displays calculated DGA values as vertex colors on the selected mesh and enables Display Colors. Selecting Visualizer also selects Insert in Deformation Chain by default.

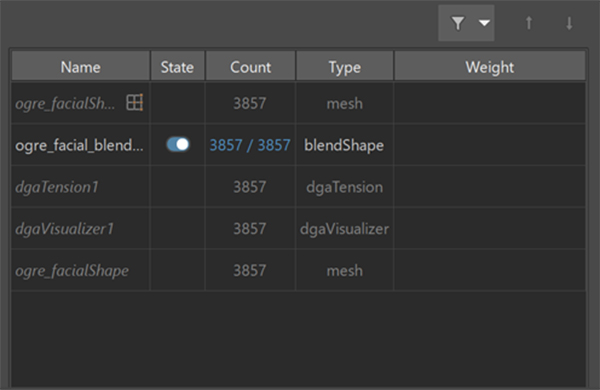

Insert in Deformation Chain Inserts the selected DGA nodes into each selected mesh's deformation chain.
Base Mesh From Specifies the geometry state where the measurement starts.
Deformed Mesh From Specifies the geometry state where the measurement ends.
Source Channel Specifies which calculated value is sent to connected nodes.
Create Creates and connects the selected DGA nodes on all selected meshes using the current settings.
Apply Applies the current settings and creates or connects the selected DGA nodes on all selected meshes.

Creation and Undo behavior

Point Values requires Point Value Array, so Maya includes both nodes in the created graph. Selecting Visualizer selects Insert in Deformation Chain by default.

One Undo operation removes the DGA nodes and connections created for all meshes in the operation

Source: Tension Attributes

Tension Mode Specifies the method used to calculate squash and stretch.
Max Stretch Sets the maximum stretch ratio. Stretch output is always clamped to this value. When Normalize Tensions is enabled, the value is also used to normalize stretch output.
Max Squash Sets the maximum squash ratio. Squash output is always clamped to this value. When Normalize Tensions is enabled, the value is also used to normalize squash output.
Normalize Tensions Normalizes the clamped squash and stretch output values using Max Squash and Max Stretch.

Source: Delta Attributes

Delta Mode Specifies whether dgaDelta measures changes in vertex position or vertex normal angle.
Normalize Output When enabled, clamps delta output to the Normalization Min and Normalization Max range, then normalizes the clamped values to 0-1. When disabled, delta output is not clamped.
Normalization Min Sets the minimum value used to clamp delta output before normalization.
Normalization Max Sets the maximum value used to clamp delta output before normalization.
Delta normalization: Delta output is clamped only when Normalize Output is enabled. Maya first clamps values to Normalization Min and Normalization Max, then normalizes that range to 0-1. When Normalize Output is disabled, delta output is not clamped.
