_{Thanks to Alex Mateo for the use of his Gabi model}

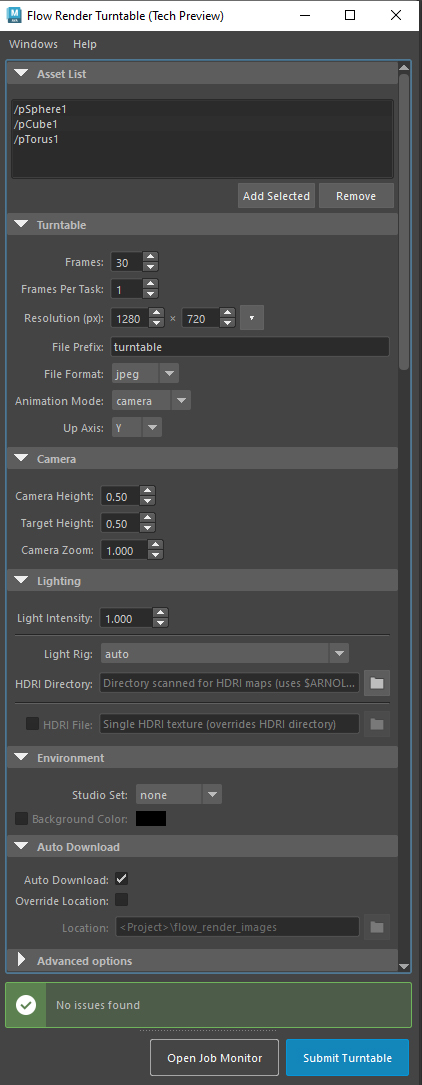

Flow Render Turntable submits a turntable animation job to the Flow Render cloud service. Open the window from Arnold > Flow Render > Submit Turntable Job.

Asset

The Turntable submitter allows a list of selected objects to be submitted, so you can render turntables for multiple assets in a single job.

Object

Specifies the objects to use for the turntable. Click Use Selected to populate the field from the current scene selection.

Turntable

Frames

Sets the total number of frames for one full 360-degree rotation of the turntable.

Resolution

Specifies the output resolution in pixels.

File Prefix

Sets the filename prefix for the rendered turntable frames.

File Format

Sets the output file format for the rendered frames.

Animation Mode

Determines how the turntable animation is driven.

• Camera: Rotates the camera around the object.
• Object: Rotates the object.

Up Axis

Sets the axis used as the up direction for the turntable rotation.

Camera

Camera Height

Sets the height of the turntable camera relative to the object's bounding box.

Target Height

Sets the height of the camera's look-at target relative to the object's bounding box.

Camera Zoom

Controls the zoom level of the turntable camera. Higher values move the camera closer to the subject.

Lighting

Light Intensity

Scales the overall intensity of the light rig.

Light Rig

Specifies the lighting setup to use for the turntable.

• White Dome: Applies a white dome light.
• Two Quads: Applies a two-quad lighting setup.

HDRI Directory

Specifies a directory to scan for HDRI maps. Uses the $ARNOLD token by default.

HDRI File

Specifies a single HDRI texture to use, overriding the HDRI directory.

Environment

Studio Set

Applies a preset studio environment to the turntable render.

• None: Uses the scene environment.
• Pedestal: Applies a pedestal studio environment.
• Cyclo: Applies a cyclorama studio environment.

Background Color

When enabled, overrides the background with a solid color. Use the color swatch to set the color.

Download

Auto Download

When enabled, automatically downloads the completed turntable render from Flow Render.

Override Location

When enabled, overrides the default download location.

Location

Specifies the local folder where the downloaded turntable render is saved. Defaults to <Project>\flow_render_images.
