Process Submittal Items

This page provides an overview of how to process submittal items within the Submittals tool once they have been created. It covers:

The Submittals tool facilitates efficient processing of submittals through built-in workflows. Once a submittal item is created, it goes through various review and approval stages tracked via the Workflow Table and workflow bar.

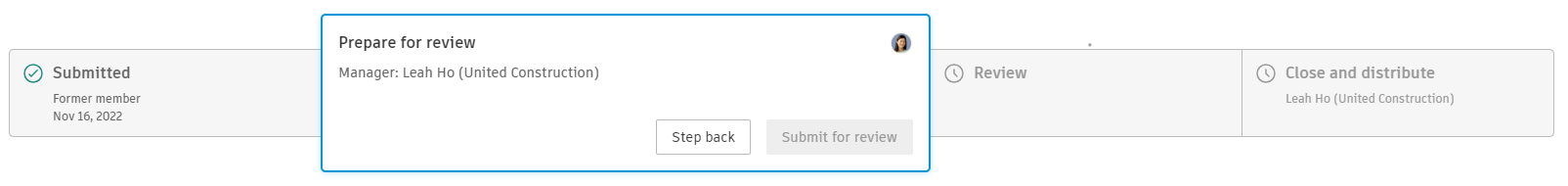

  1. Workflow Bar:

    • The workflow bar visually displays the current stage of the submittal in the review process.
    • This allows you to quickly ascertain the progress of each submittal item.
    • When an item is in review status, the bar shows "Pending review from" instead of "Reviewers" to better indicate who still needs to take action.
    • The bar also displays "Responded: X" to show how many reviewers have already provided their response in the current review step.
    • Hovering over "Pending review from" shows users who haven't responded yet, while hovering over "Responded" shows reviewers who have already completed their review.
    • User avatars in the workflow bar represent people who still need to provide their review rather than all reviewers.

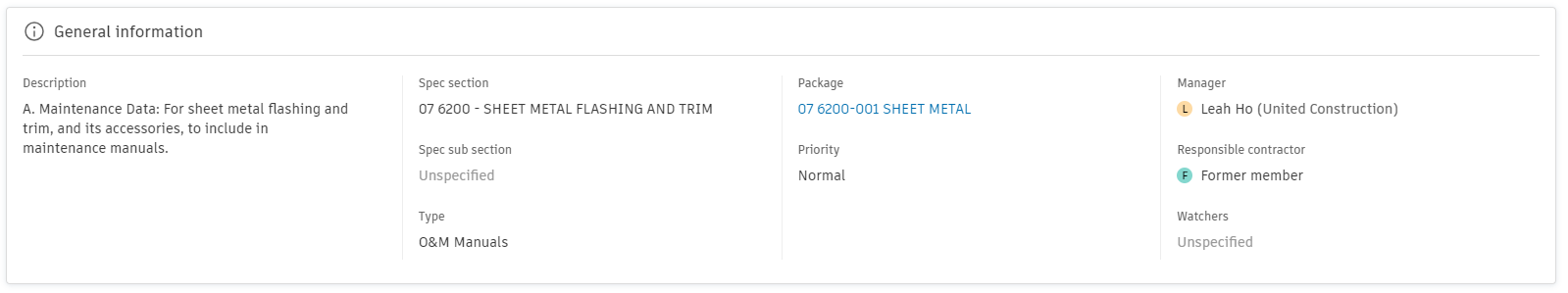

  2. General Information Section:

    • This section contains basic information about the submittal item such as description, type, and spec section.
    • It is essential for providing an overview of the submittal's context.

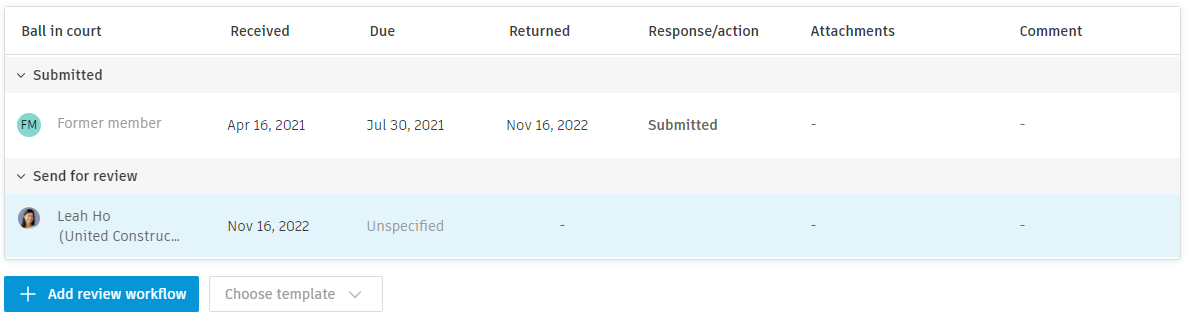

  3. Workflow Table:

    • Summarizes the workflow with important dates, attachments, and comments.
    • For review steps that are in progress or completed, reviewers who have already responded are listed first, in chronological order of their response.
    • The Response/Action column allows for actions to be taken on the submittal item, such as approval or request for revisions.
    • Allows selecting Review template or editing review workflow for given submittal item.

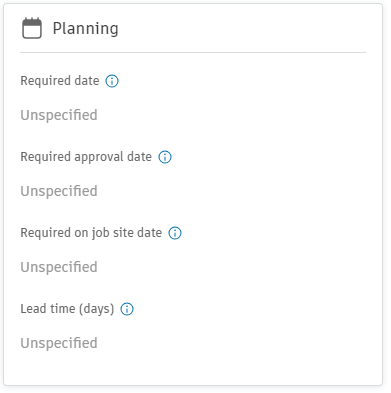

  4. Planning Section:

    • Includes the following dates essential for planning and scheduling:
      • Required Date
      • Required Approval Date
      • Required on Job Site Date
      • The Lead Time

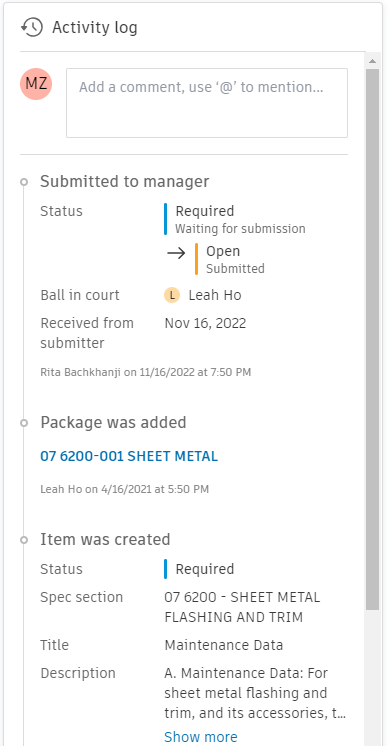

  5. Activity Log Section:

    • Displays a history of all activity related to the submittal item.
    • Allows users to comment and mention others using @ for effective communication and collaboration.

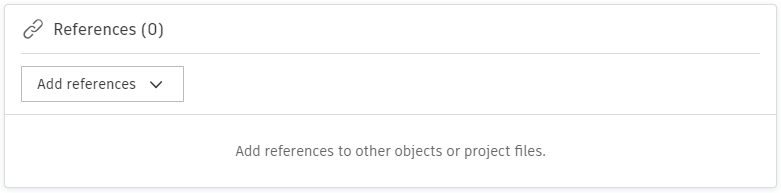

  6. Reference Section:

    • Allows users to link the submittal item to other project elements such as Assets, Files, Forms, Issues, PCOs, Photos, RFIs, other Submittals, Schedule, and Sheets.
    • This enhances cross-referencing and ensures that the submittal is aligned with other project components.

Submittals List View Columns

The Submittals list view includes a new "Pending action from" column placed after the "Ball in court" column. This new column shows reviewers who haven't yet provided their review in the current review step.

When an item is not in review status, the "Pending action from" column shows the same value as the "Ball in court" column.

The "Pending action from" column follows the same display format as the "Ball in court" column:

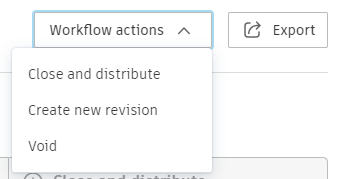

Submittal Workflow Actions

  1. Close and Distribute:

    • The Close and distribute button is used to formally conclude the review process of a submittal item.
    • Upon closure, the submittal information is distributed to all individuals involved in the process.
    • This action signifies that the submittal has been reviewed, and necessary feedback or approval has been provided.
Important: Closed submittals can be shared with other Autodesk Construction Cloud projects using Bridge. To learn more, see Sharing Closed Submittals using Bridge.
Note: You can share Closed submittals to the Files tool. Once in Files, you can share the submittals to another Autodesk Construction Cloud project using Bridge and manage the shared items in the Bridge tool.

  1. Create New Revision:

    • The Create new revision button enables users to generate a new version of the submittal item.
    • When creating a new revision, users can:
    • Assign a responsible contractor.
    • Set a due date for the submitter.
    • Add watchers who need to be informed or monitor the submittal.
    Important:

    Submittal Managers and Project Administrators can create new revisions or close submittals regardless of their status, except for items marked as Draft or Void.

  2. Void:

    • The Void button is used to invalidate a submittal item.
    • This action is typically taken when the submittal item is no longer relevant or necessary for the project.
    • Voiding a submittal item indicates that it should not be considered in the ongoing project activities.

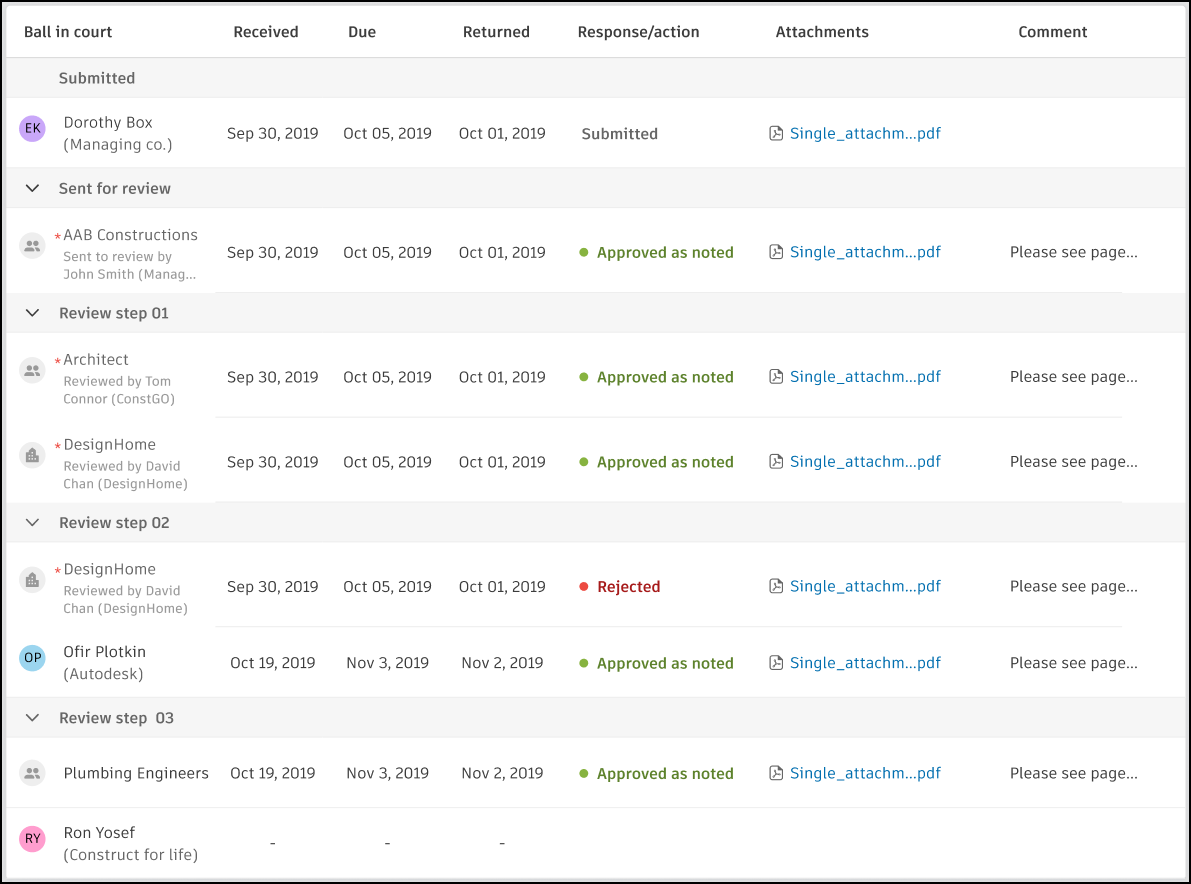

Assigning Roles and Companies as Submittal Managers, Responsible Contractors and Reviewers

Assign roles and companies as Submittal Managers, Responsible Contractors and Reviewers to simplify your submittal workflows. With just a few clicks, you can now assign entire roles or companies to review submittals, rather than individual users. This gives you flexible management of reviews at the role/company level across your project.

You can assign Roles and Companies as Submittal Managers, Responsible Contractors, and Reviewers in the following situations:

Follow these steps to assign roles and companies as reviewers:

  1. Open the submittal item.

    The dropdown menu contains separate sections for Members, Roles, and Companies.

  2. In the Manager, Reviewers, or Responsible Contractor fields, click the dropdown menu.
  3. Check the box next to the desired role or company to assign them.

    Do not check individual users belonging to that role/company.

  4. Click Done to save the changes.

Once a role/company is assigned:
