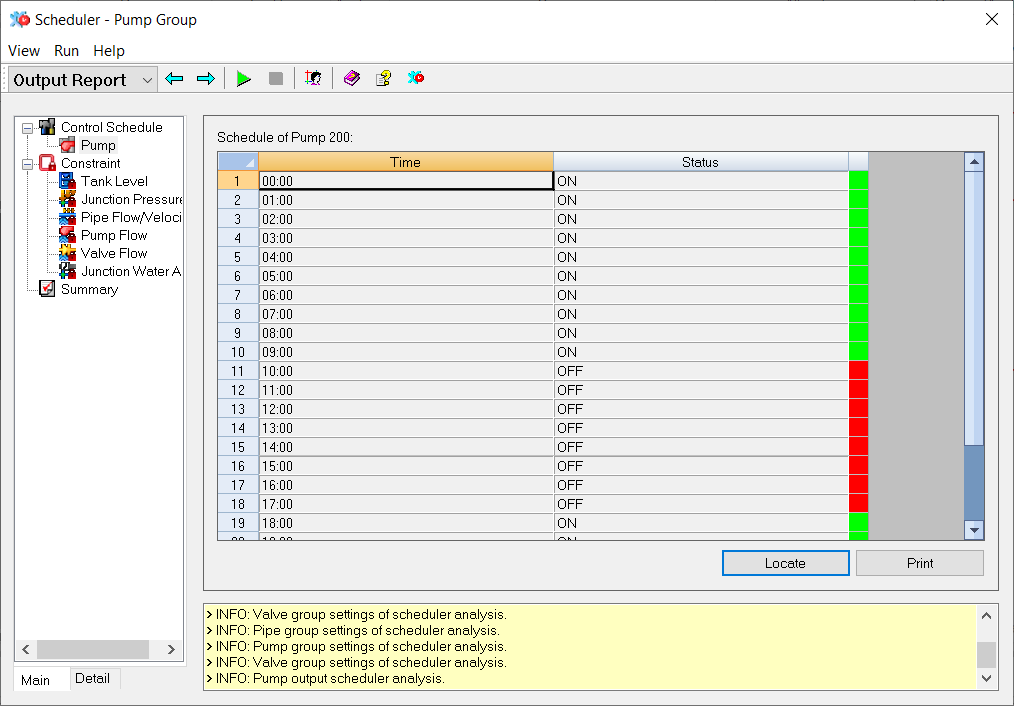

The Output Report dialog box is available after completing a successful Scheduler run. The Output Report is divided into three main categories, the Control Schedule report, the Constraint report, and the Summary report.
Control Schedule
The Control Schedule reports the simulation time and status of the current element during the optimized schedule.
Pump - Reports the Time and Status of the pumps in the optimized schedule.
Valve - Reports the Time and Status of the valves in the optimized schedule.
Pipe - Reports the Time and Status of the pipes in the optimized schedule.
Main - The Main Tab of the Output Report shows the schedule for the first element in the scheduler analysis.
Detail - The Detail tab of the Output Report Tab shows schedules for each individual element included in the scheduler analysis.
Constraint
Lists of constraints, numerical results, and infractions from the last successful simulation.
Tank Level - The Tank Level Output Report details tank levels and violations from a Scheduler simulation.
Junction Pressure - The Junction Pressure Output Report details junction pressures and violations from a Scheduler simulation.
Pipe Flow/Velocity - The Pipe Flow/Velocity Output Report details pipe flows, velocities, and violations from a Scheduler simulation.
Pump Flow - The Pump Flow Output Report details pump flows and violations from a Scheduler simulation.
Valve Flow - The Valve Flow Output Report details valve flows and violations from a Scheduler simulation.
Junction Water Age - The Junction Water Age Output Report details junction water age and violations from a Scheduler simulation.
Summary
This category offers a summary of the optimization input, settings, and results.
Message Board
This section of the Scheduler dialog box will display a message upon successful completion of the commands that have been activated or pertinent error messages to the simulation.
