The Scaleform MMO (Massively Multiplayer Online Game) Kit, designed for optimum performance and memory savings, provides a foundation for massively multiplayer online game UI using Autodesk® Scaleform®.

The kit includes CLIK-based MMO interface elements like an Inventory and Paper Doll, as well as frameworks for drag and drop, windowing, dynamic icon resource management, and component data binding. The assets, ActionScript widgets, and sample C++ code can be reused by developers and/or leveraged as a best-practices sample in the architecture and implementation of their user interface for their game.

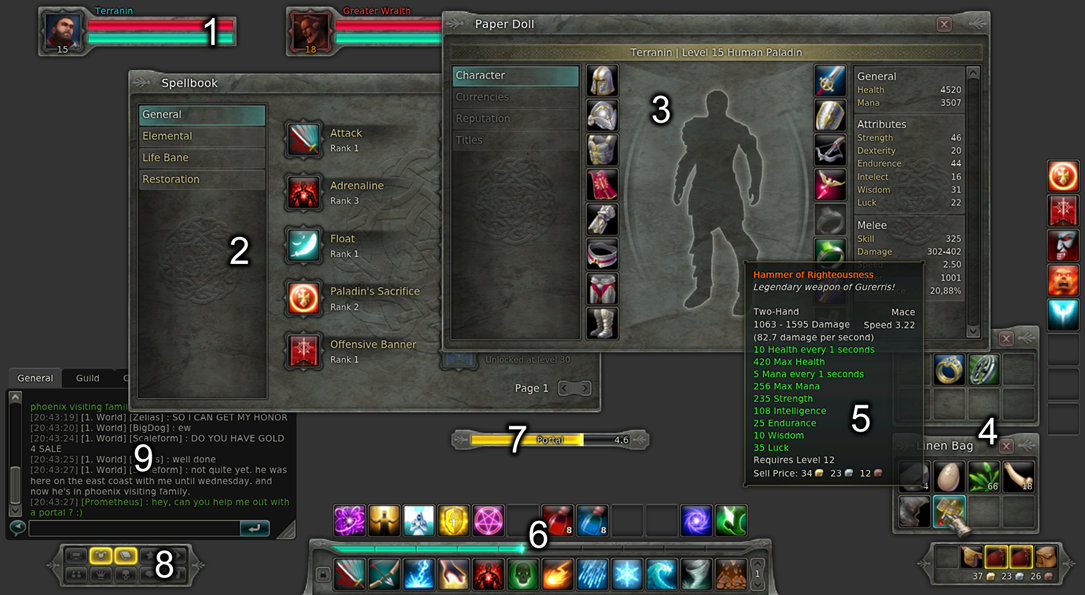

Figure 1: MMO UI Overview

Although this kit provides an out of the box UI solution for an MMORPG, users are not limited by the content provided. We expect users to customize or extend individual elements of this kit to create new and innovative interfaces for any type of game or application.

The MMO Kit features the following reusable UI widgets:

1. Player and Target Nameplates
2. Spell / Ability Book
3. Paper Doll (Player Equipment and Statistics Manager)
4. Inventory
5. Tooltips
6. Quick-Action Bars
7. Cast Bar
8. Window Menu
9. Chat Log with Tabs

The kit also provides logic for the following frameworks:

1. Drag and Drop
2. Windowing
3. Dynamic External Resource Management
4. Game-Data Binding to Widgets
