Graphite Modeling Tools

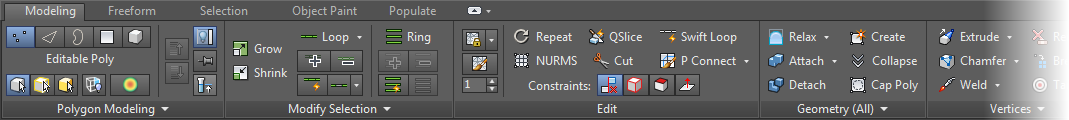

The Graphite Modeling Tools set is found on the ribbon. These tools give you a wide variety of features for editing polygon objects.

The ribbon contains all standard Edit/Editable Poly tools as well as additional tools for creating, selecting, and editing geometry. Also, you can customize the ribbon however you like. For details, see the following links.

Tip: If the ribbon does not appear in the program interface, choose Customize menu Show UI Show Ribbon or, on the Main Toolbar, click (Toggle Ribbon).
Topics in this section
  • Modeling Tab
    The Modeling tab contains the tools you use most often for polygon modeling, organized into separate panels for easy, convenient access.
  • Freeform Tab
    The Freeform tab contains tools for creating and modifying polygon geometry by "painting" in the viewports. Also, the Defaults panel provides for saving and loading brush settings.
  • Selection Tab
    The Selection tab of the ribbon provides a variety of specialized tools for making sub-object selections. For example, you can select concave or convex areas, sub-objects that face the viewpoint, or point in a certain direction, and more.
  • Object Paint Tab
    The Object Paint tool enables you to paint objects freehand anywhere in the scene or onto specific object surfaces. You can also “fill” selected edges automatically with paint objects. You can paint with multiple objects in a specific order or at random, and change the scale as you paint. Applications include applying regular surface features such as rivets, plants, columns, and even populating a scene with characters.
  • Customizing the Ribbon
    The Customize Ribbon dialog offers a wealth of tools for editing the ribbon. You can use the mouse and keyboard to rearrange existing controls, rename them, and change their icons. More important, you can add controls based on almost any tool in 3ds Max, or new tools based on custom scripts.
Parent topic: Surface Modeling
