L-Ext

Use L-Ext to create an extruded L-shaped object.

Create panel > (Geometry) > Extended Primitives > Object Type rollout > L-Ext button
Default menu: Create menu > Extended Primitives > L-Extrusion
Alt menu: Objects menu > Extended Primitives > L-Extrusion

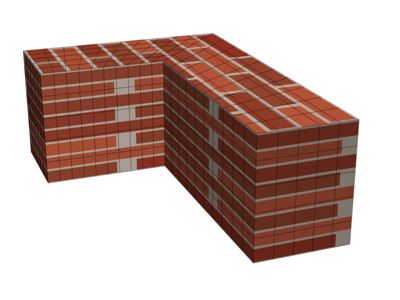

Example of L-Ext

Procedure

To create an L-Ext object:

From the Create menu, choose Extended Primitives L-Ext.
Drag the mouse to define the base. (Press Ctrl to constrain the base to a square.)
Release the mouse and move it vertically to define the height of the L-extrusion.
Click, and then move the mouse vertically to define the thickness or width of the walls of the L-extrusion.
Click to finish the L-extrusion.

Corners: Draws the object from corner to corner. You can change the center location by moving the mouse.
Center: Draws the object from the center out.

Side/Front Length: Specify the lengths of each "leg" of the L.
Side/Front Width: Specify the widths of each "leg" of the L.
Height: Specifies the height of the object.
Side/Front Segs: Specify the number of segments for a specific "leg" of the object.
Width/Height Segs: Specify the number of segments for the overall width and height.

Note: The object's dimensions (Back, Side, Front) are labeled as though it were created in the Top or Perspective viewports, and seen from the front in world space.
Generate Mapping Coords: Sets up the required coordinates for applying mapped materials to the object. Default=on.
Real-World Map Size: Controls the scaling method used for texture mapped materials that are applied to the object. The scaling values are controlled by the Use Real-World Scale settings found in the applied material's Coordinates rollout. Default=off.
