The Extended Parameters rollout is the same for all shading types of Standard material, with the exception of the Strauss and Translucent shaders, as noted below. It has controls related to transparency and reflection, as well as options for Wire mode.
-
Material Editor > Standard Material > Extended Parameters rollout
This topic contains tables of the Index of Refraction for some common physical materials. These can be used to create Standard materials with realistic transparency.
Additive Opacity and the Alpha Channel
By default, additive opacity does not generate an alpha value. In other words, the alpha value is zero, indicating no transparency. This gives correct results with backgrounds in renderings, but if you want to composite objects with additive opacity using video post or a different compositing program, you might want to have additive opacity render with transparency. To do so, add the following line to the [Renderer] section of the 3dsmax.ini file, and then restart 3ds Max:
AlphaOutOnAdditive=1
To revert to the default method of rendering additive opacity, in the 3dsmax.ini file, change the value of AlphaOutOnAdditive back to 0 (zero), and then restart 3ds Max.
Interface
Advanced Transparency group (most shaders)
For the Translucent shader, the Advanced Transparency group is blank.
These controls affect the opacity falloff of a transparent material.
- Falloff
- Chooses whether falloff is in or out, and how great it is.
- In Increases transparency toward the inside of the object, as in a glass bottle.
- Out Increases transparency toward the outside of the object, as in a cloud of smoke.
- Amt (Amount)
- Specifies the amount of transparency at the outside or inside extreme.
- Type
- These controls choose how transparency is applied.
- Filter computes a filter color that it multiplies by the color behind the transparent surface. The filter, or transmissive color, is the color transmitted through transparent or semi-transparent materials such as glass. Click the color swatch to change the filter color.
Click the map button to assign a Filter Color map. This button is a shortcut: You can also assign a Filter Color map on the Maps rollout.
You can use the filter color with volumetric lighting to create effects such as colored light through a stained-glass window. Ray-traced shadows cast by transparent objects are tinted with the filter color.

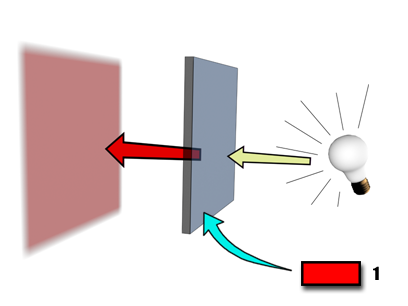

A shadow's color is changed with a red filter color.
- Subtractive subtracts from the color behind the transparent surface.
- Additive adds to the color behind the transparent surface.
- Filter computes a filter color that it multiplies by the color behind the transparent surface. The filter, or transmissive color, is the color transmitted through transparent or semi-transparent materials such as glass. Click the color swatch to change the filter color.
- Index of Refraction
- Sets the index of refraction (IOR) used by refraction maps and raytracing. The IOR controls how severely the material refracts transmitted light. Left at 1.0, the IOR of air, the object behind the transparent object does not distort. At 1.5 the object behind distorts greatly, like a glass marble. At an IOR slightly less than 1.0, the object reflects along its edges, like a bubble seen from under water. Default=1.5.
Common IORs (assuming the camera is in air or a vacuum) are:
Material IOR Value Vacuum 1.0 (exactly) Air 1.0003 Water 1.333 Glass 1.5 (clear glass) to 1.7 Diamond 2.418 In the physical world, the IOR results from the relative speeds of light through the transparent material and the medium the eye or the camera is in. Typically this is related to the object's density; the higher the IOR, the denser the object.
You can also use a map to control the index of refraction. IOR maps always interpolate between 1.0 (the IOR of air) and the setting in the IOR parameter. For example, if the IOR is set to 3.55 and you use a black-and-white Noise map to control IOR, the IORs rendered on the object will be set to values between 1.0 and 3.55; the object will appear denser than air. If, on the other hand, your IOR is set to 0.5, then the same map values will render between 0.5 and 1.0, as if the camera were under water and the object was less dense than the water.
Here are some more IOR values for various materials:
Material IOR Value Carbon Dioxide, Liquid 1.200 Ice 1.309 Acetone 1.360 Ethyl Alcohol 1.360 Sugar Solution 30% 1.380 Alcohol 1.329 Flourite 1.434 Quartz, Fused 1.460 Calspar2 1.486 Sugar Solution 80% 1.490 Glass, Zinc Crown 1.517 Glass, Crown 1.520 Sodium Chloride 1.530 Sodium Chloride (Salt) 1 1.544 Polystyrene 1.550 Quartz 2 1.553 Emerald 1.570 Glass, Light Flint 1.575 Lapis Lazuli 1.610 Topaz 1.610 Carbon Bisulfide 1.630 Quartz 1 1.644 Sodium Chloride (Salt) 2 1.644 Glass, Heavy Flint 1.650 Methylene Iodide 1.740 Ruby 1.770 Sapphire 1.770 Glass, Heaviest Flint 1.890 Crystal 2.000 Chromium Oxide 2.705 Copper Oxide 2.705 Amorphous Selenium 2.920 Iodine Crystal 3.340
Advanced Transparency group (Strauss shader)
- Refraction Filter
- Click the color swatch to choose a Refraction Filter color. The filter, or transmissive color, is the color transmitted through transparent or semi-transparent materials such as glass.
Click the map button to assign a Filter Color map. This button is a shortcut: You can also assign a Filter Color map on the Maps rollout.
You can use the filter color with volumetric lighting to create effects such as colored light through a stained-glass window. Ray-traced shadows cast by transparent objects are tinted with the filter color.
- Index of Refraction
- Sets the index of refraction (IOR) used by refraction maps and raytracing. The IOR controls how severely the material refracts transmitted light. Left at 1.0, the IOR of air, the object behind the transparent object does not distort. At 1.5 the object behind distorts greatly, like a glass marble. At an IOR slightly less than 1.0, the object reflects along its edges, like a bubble seen from under water. Default=1.5.
See the previous section for representative IOR values.
Wire group
- Size
- Sets the size of the wire in wireframe mode. You can set either pixels or current units.
- In
- Chooses how to measure wire.
- Pixels (The default.) Measures wire in pixels. With pixels, wires maintain the same apparent thickness regardless of the scale of the geometry or how near or far the object is positioned.
- Units Measures wire in 3ds Max units. With units, the wires appear thinner at a distance and thicker at close range, as if they were modeled in the geometry.
Reflection Dimming group
For the Strauss shader, the Reflection Dimming group does not appear.
These controls dim reflection maps that are in shadow.
Reflection dimming
Above: None
Below: 0.0 (100% dimming)
- Apply
- Turn on to use reflection dimming. When off, the reflection-mapped material is not affected by the presence or absence of direct light. Default=off.
- Dim Level
- The amount of dimming that takes place in shadow. At 0.0, the reflection map is completely dark in shadow. At 0.5, the reflection map is half dimmed. At 1.0, the reflection map is not dimmed and the material appears as if Apply were turned off. Default=0.0.
- Refl. Level
- Affects the intensity of the reflection that is not in shadow. The Reflection Level value multiplies the illumination level of the lit area of the reflection, to compensate for dimming. In most cases, the default value of 3.0 keeps the reflection in the lit area at about the same level it would appear if reflection dimming were not on.
