Using Material Libraries

Material libraries assemble related materials for convenience.

Some libraries are provided with 3ds Max. You can also create your own custom libraries.

To get a material from a library:

1. In the Material/Map Browser, open the Options menu and choose Open Material Library.

   3ds Max opens a file dialog so you can choose the library (MAT file) to open.

   After you choose a library, that library appears in the Material/Map Browser.

2. Drag the material you want from the library file entry in the Material/Map Browser to the active View (or simply double-click the entry for the material).

To save a material in a library:

1. In the Material/Map Browser, open the Options menu and choose Open Material Library.

   3ds Max opens a file dialog so you can choose the library (MAT file) where you will save the material.

   After you choose a library, that library appears in the Material/Map Browser.

2. Also in the Material/Map Browser, drag the material from another group (for example, Scene Materials) to the entry for the library file.

   The material becomes part of the library as well.

   Tip: If the material is in the active View, you can also drag a wire from the material's output socket, then drop the material onto the library group.
3. In the Material/Map Browser, right-click the library file entry and choose Close Material Library.

   3ds Max asks if you want to save changes to the library. Click Yes.


   Note: You can also right-click the library file entry, select the library path and name, and select Save or Save As. When you select Save As, you can specify a new file name and also save as compatible with a previous version of 3ds Max, up to three previous versions.

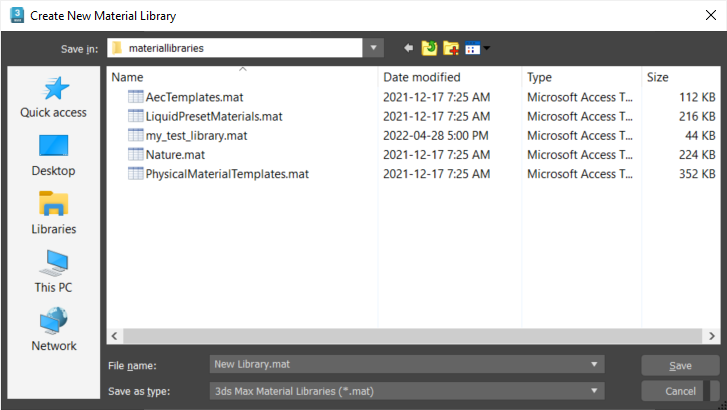

To create a new library:

• In Material/Map Browser, open the Options menu and choose New Material Library.

  3ds Max prompts you for a name for the new library.



  The new library appears in the Material/Map Browser.

  3ds Max saves the library as a MAT file with the name you entered; for example, New Library.mat. The default location for the library is the \materiallibraries folder in your current project. If you have not set a project folder, it saves the new library in the folder <3ds Max program folder>\materiallibraries.
