The region-selection tools let you use the mouse to select one or more objects by defining an outline or area.

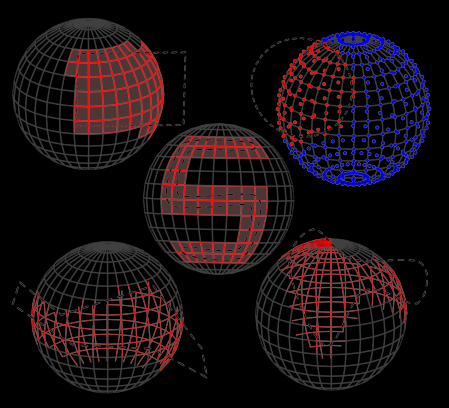

Top Left: Selecting face sub-objects with a rectangular region
Top Right: Selecting vertex sub-objects with a circular region
Center: Selecting face sub-objects with a painted region
Bottom Left: Selecting edge sub-objects with a fence region
Bottom Right: Selecting edge sub-objects with a lasso region
Region Selection
By default, when you drag the mouse a rectangular region is created. When you release the mouse all objects within and touched by the region are selected. The remainder of this topic describes how you can change each of these settings.
Setting Region Type
The type of region you define when you drag the mouse is set by the Region flyout button to the right of the Select By Name button. You can use any of five types of region selection:
- Rectangular Region Dragging the mouse selects a rectangular region. See Rectangular Selection Region.
- Circular Region Dragging the mouse selects a circular region. See Circular Selection Region.
- Fence Region Draw an irregular selection-region outline by alternating between moving the mouse and clicking (begin with a drag). See Fence Selection Region.
- Lasso Region Dragging the mouse outlines an irregular selection region. See Lasso Selection Region.
- Paint Region Drag the mouse over objects or sub-objects to be included in the selection. See Paint Selection Region
Setting Region Inclusion
This option lets you specify whether to include objects touched by the region border. It applies to all region methods.
Choose Edit menu
Region to display a submenu of the following two items. Only one can be active at a time. The Window/Crossing toggle on the main toolbar also switches between these two modes.
- Crossing (The default.) Selects all objects that are within the region and crossing the boundaries of the region. See Crossing Selection.
- Window Selects only objects that are completely within the region. See Window Selection.
You can set up a preference to switch automatically between Window and crossing based on the direction of your cursor movement. See Auto Window/Crossing by Direction in General Preferences.
Procedure
To make a region selection using defaults:
- Click
(Select Object). - Drag the mouse to define a region.
A rubber-band rectangle appears.
- Release the mouse button to select all objects within or touching the region.
The selected objects turn white.
You can also use the Select And Transform buttons on the main toolbar to select by region. You must start defining the region over an unselectable area of the viewport. Otherwise, you’ll transform the object beneath your mouse when you begin to drag.
