Schematic Terminals Tutorial

Insert and modify schematic terminals. Define multi-level schematic terminals.

Time required

45 minutes

Prerequisites:

Copy all files located in



Users\{username}\Documents\Acade {version}\Aedata\Tutorial\Aegs\Schematic terminals

to

Users\{username}\Documents\Acade {version}\Aedata\Proj\Aegs


Note: Delete existing files in the destination folder before copying.

Follow the workflow topics listed below to accomplish these tasks:

  • Insert terminals
  • Assign terminal block properties
  • Define a multi-level terminal
  • Associate terminals

Workflow Topics

  1. About schematic terminals
    Understand schematic and panel terminals and relationships.
  2. Insert terminals

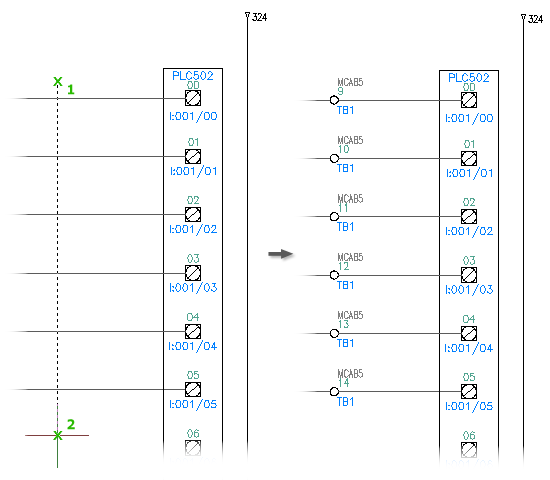

    Use the multiple insert tool to insert and annotate a string of terminals.
  3. Multi-level terminals
    Define a multi-level terminal by selecting an appropriate catalog value.
  4. Modify multi-level associations
    Use the Add/Modify Association dialog box to assign terminals to specific levels of a multi-level terminal.
  5. Terminal Properties
    Define a multi-level terminal by assigning appropriate properties.
  6. Associate terminals
    Use the Associate Terminals command to assign terminals to specific levels of a multi-level terminal.
