Previously, project-wide or drawing-wide wire number updates did not update the wire number annotations in panel footprints. This included terminal blocks representations such as graphical terminal strips, tabular terminal strips, and jumper charts.

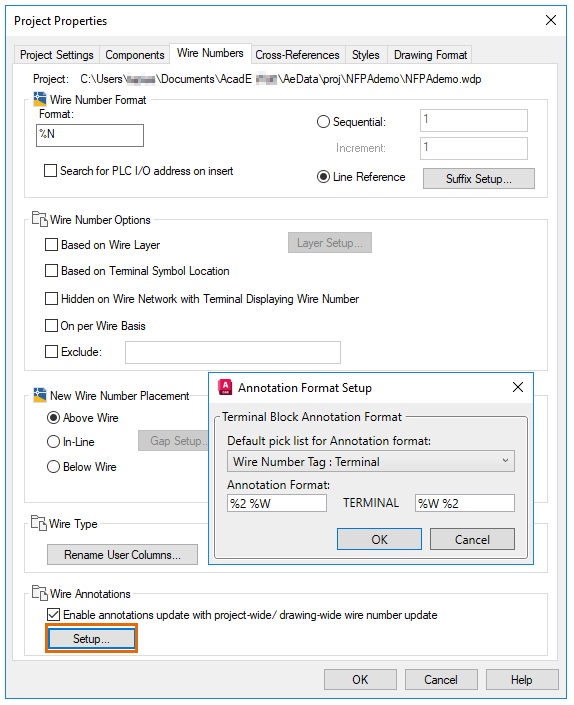

In AutoCAD Electrical 2026, you can now use project-wide or drawing-wide wire number updates to update the annotations in panel footprints and terminal block representations, including graphical terminal strips, tabular terminal strips, and jumper charts. This enhancement ensures that your wire number annotations in panel footprints and terminal blocks are consistently updated along with the rest of the project or drawing.
