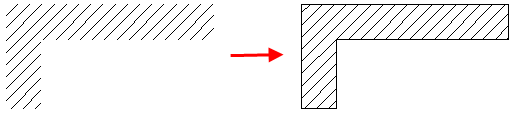

To Re-create the Boundary Object for a Hatch Object

Select the hatch object.
Click Hatch Editor tabBoundaries panelRecreate Boundary. Find
At the prompt, specify the type of object to create as the new boundary, and whether to associate the boundary with the hatch.
Click Hatch Editor tabClose panelClose Hatch Editor. Find

Note:

You can also right-click an unbounded hatch object and choose Generate Boundary; however, this option does not allow you to create an associative boundary.
In some cases, it is easier to delete the hatch object, and create a new hatch object from the desired boundary objects.
